The WSHT-BM Ball Mill is a key grinding equipment widely used in cement, silicate products, new building materials, fertilizers, and metal ore dressing. It features horizontal cylindrical rotating dev
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
The WSHT-BM Ball Mill is a key grinding equipment widely used in cement, silicate products, new building materials, fertilizers, and metal ore dressing. It features horizontal cylindrical rotating dev...
The WSHT-BM Ball Mill is a key grinding equipment widely used in cement, silicate products, new building materials, fertilizers, and metal ore dressing. It features horizontal cylindrical rotating device with two warehouses, lattice-type ball mill.
The ball mill operates by rotating a cylinder with steel balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation speed is optimized for different materials to achieve maximum grinding efficiency.
Optimized liner design and ball gradation ensure maximum impact force and grinding efficiency.
Horizontal cylindrical design provides stable operation with low vibration and noise levels.
Lattice-type design allows for easy inspection and maintenance of internal components.
Suitable for grinding various materials including cement, silicate, and metallic ores.
| Model | Cylinder Diameter (mm) | Cylinder Length (mm) | Power (kw) | Capacity (t/h) |
|---|---|---|---|---|
| BM-900×1800 | 900 | 1800 | 18.5 | 0.5-2 |
| BM-1200×2400 | 1200 | 2400 | 30 | 1.5-4 |
| BM-1500×3000 | 1500 | 3000 | 55 | 3-6 |
| BM-1830×3000 | 1830 | 3000 | 75 | 5-8 |
| BM-2200×3000 | 2200 | 3000 | 132 | 8-14 |
| BM-2700×3000 | 2700 | 3000 | 220 | 12-20 |
Final grinding of cement clinker in cement manufacturing plants.
Grinding of metallic and non-metallic ores in mineral processing.
Production of silicate products including glass and ceramics.
Coal grinding in thermal power plant coal preparation systems.
All WSHT WSHT-BM series equipment undergoes rigorous quality inspection and load testing before delivery. We provide comprehensive after-sales service including installation guidance, operator training, and 24/7 technical support.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.

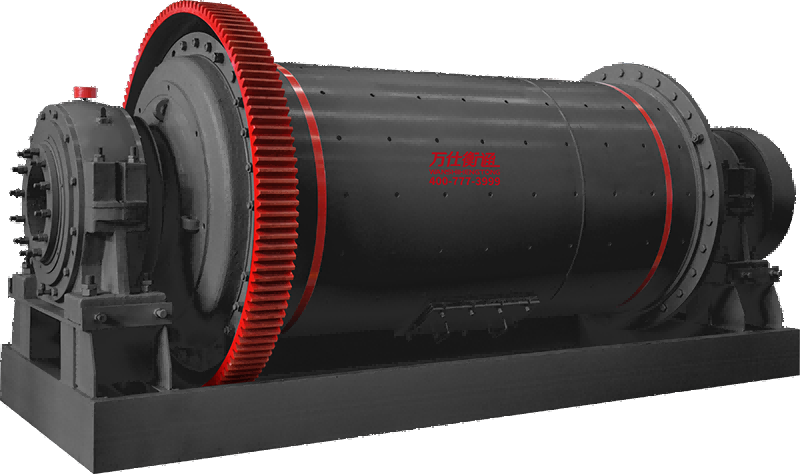

The WSHT-RM Rod Mill is a grinding equipment that uses steel rods as grinding media. It is...

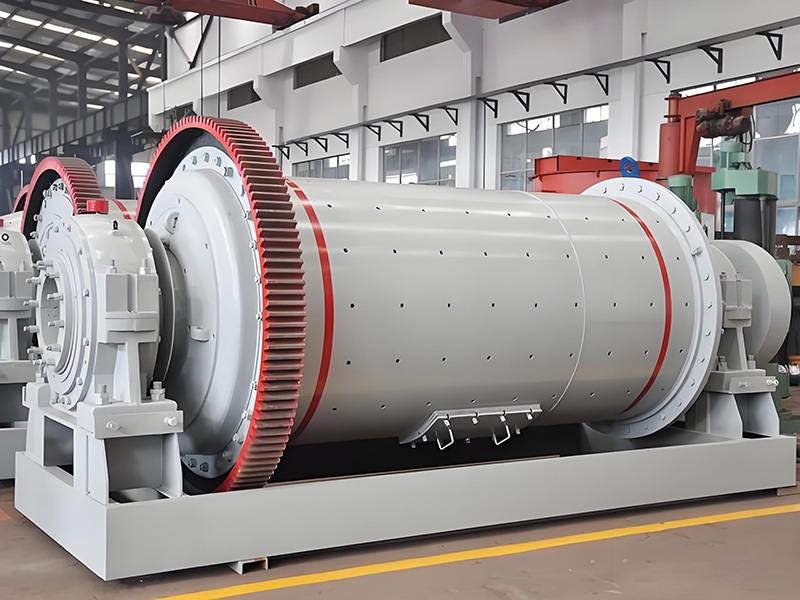

The WSHT MQYJ Series Ball Mill is a high-efficiency wet grinding mill designed for mineral...

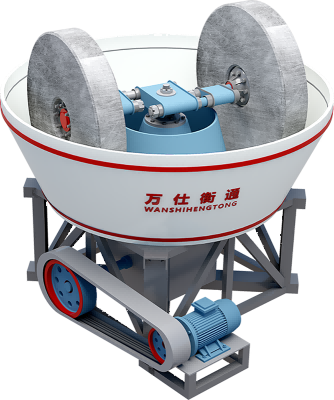

The WSHT Gold Ore Grinding Machine (Wet Pan Mill) is a versatile, low-cost grinding soluti...
Our engineering team will design a tailored solution based on your site conditions, ore characteristics and production targets. Bilingual project management with end-to-end support.
