1. Product Overview

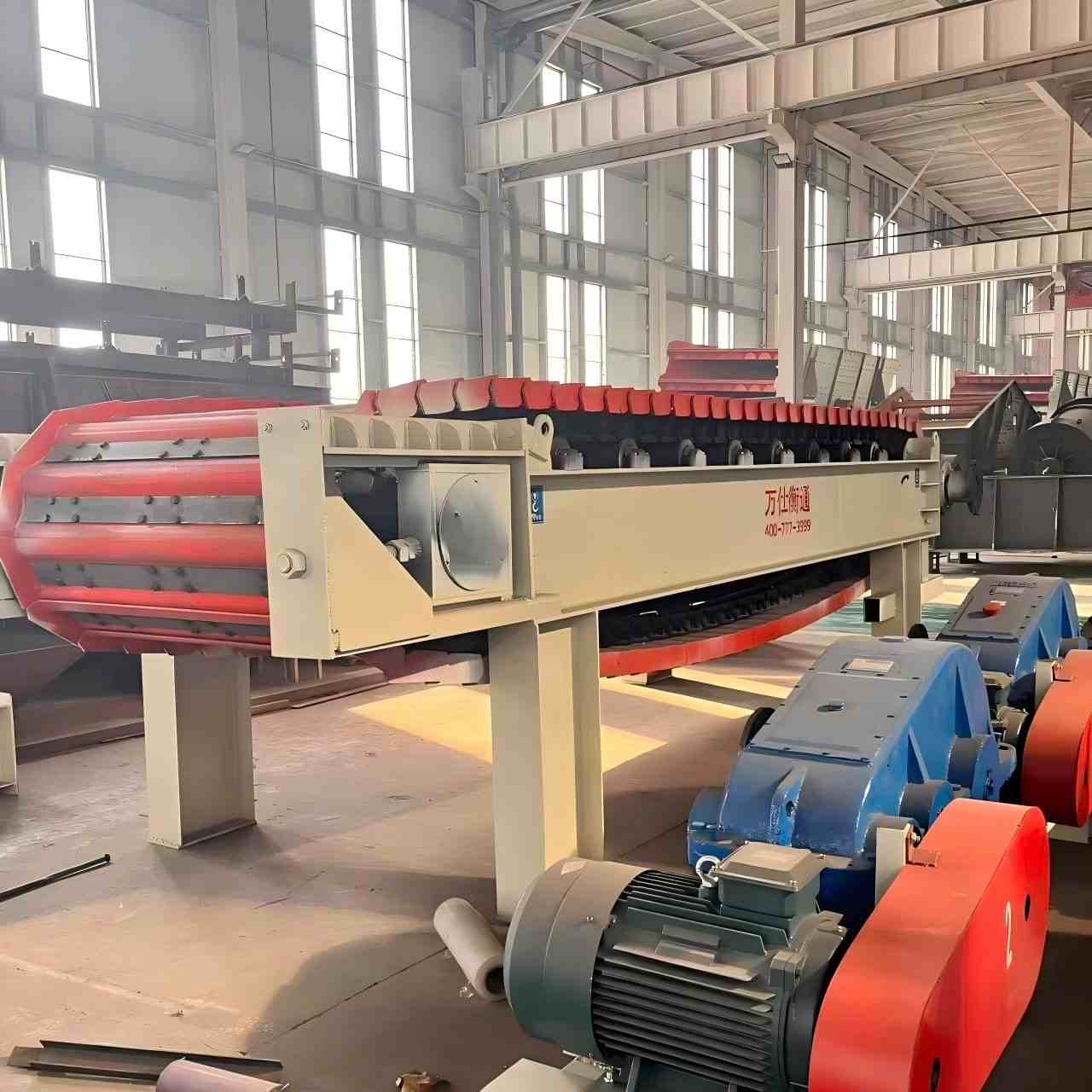

Apron Feeder (Plate Feeder) is heavy-duty continuous feeding equipment developed by WSHT factory, specially designed for large lump, high-density raw ore, rock and bulk materials. It adopts thick wear-resistant steel plate chain for stable conveying, can bear large material impact, uniform feeding volume, avoid blockage, widely matched with jaw crusher, hammer crusher, trommel screen for mining, quarry, gold mine, cement plant bulk feeding system.
2. Complete Model Specification Table
| Model | Width(mm) | Conveying Length(m) | Capacity(t/h) | Motor Power(kW) | Max Feed Lump Size(mm) |
|---|---|---|---|---|---|
| GBP800 | 800 | 3-6 | 60-120 | 7.5 | 400 |
| GBP1000 | 1000 | 4-8 | 100-200 | 11 | 500 |
| GBP1200 | 1200 | 5-10 | 180-320 | 15 | 600 |
| GBP1500 | 1500 | 6-12 | 300-500 | 22 | 750 |
| GBP1800 | 1800 | 8-15 | 450-700 | 30 | 900 |
3. Core Advantages of WSHT Apron Feeder
- Thickened wear-resistant alloy plate chain, strong impact resistance, suitable for large lump hard ore feeding
- Variable frequency speed regulation motor, flexible adjust feeding output, stable uniform material supply
- Heavy-duty bearing & driving sprocket, low failure rate, long continuous running time
- Fully sealed feeding trough, prevent dust overflow, good environmental protection performance
- Integrated welded heavy frame, strong bearing capacity, no deformation under heavy load
- Easy disassembly design, convenient maintenance and replacement of wearing parts
4. Applicable Materials & Matching Production Line
This plate apron feeder is suitable for conveying large lump stone, granite, basalt, gold ore, iron ore, limestone, construction waste, cement raw material. It is the ideal front feeding equipment matched with jaw crusher, hammer crusher, rotary trommel screen, mobile crushing station for quarry, mountain gold mine, aggregate processing plant, mineral washing plant.
5. Factory Supply & After-sales Support
- Customizable width, length, inclination angle according to customer site layout
- Full spare parts supply: wear plate, chain plate, driving roller, sprocket, reducer etc.
- Professional mining engineer team provide free site layout design
- Export standard packaging, complete CE certification, fast delivery cycle
- Long-term online technical guidance, installation & operation video provided
