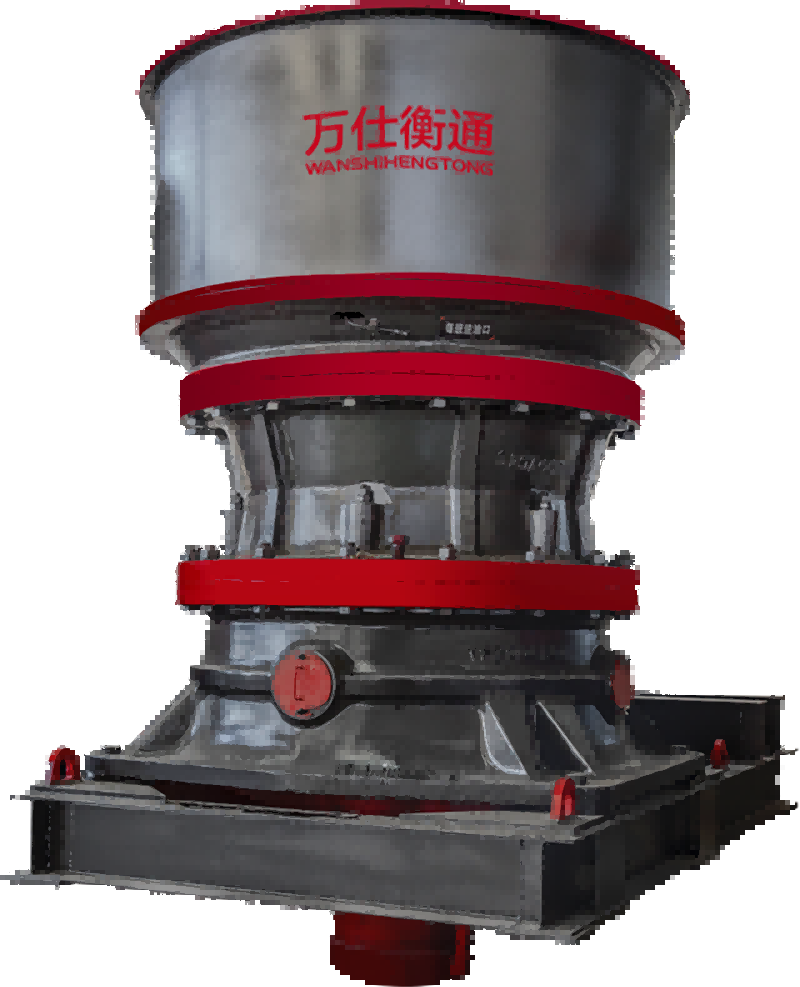

The WSHT-DG Series Single Cylinder Cone Crusher is a modern hydraulic cone crusher featuring a single hydraulic cylinder for both support and adjustment functions.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
The WSHT-DG Series Single Cylinder Cone Crusher is a modern hydraulic cone crusher featuring a single hydraulic cylinder for both support and adjustment functions....
The WSHT-DG Series Single Cylinder Cone Crusher is a modern hydraulic cone crusher featuring a single hydraulic cylinder for both support and adjustment functions.
With an optimized crushing cavity and intelligent control system, the DG series delivers high crushing efficiency, excellent product shape, and reliable tramp iron protection.
Hydraulic cylinder serves dual function of support and adjustment for simplified structure.
Automated control system monitors load, temperature, and wear for optimal performance.
Hydraulic cylinder provides instant release when uncrushable materials enter the chamber.
Upper frame lifts hydraulically for quick access to crushing chamber and wear parts.
| Model | Feed Size (mm) | Discharge Size (mm) | Power (kw) | Capacity (t/h) |
|---|---|---|---|---|
| DG-200 | ≤160 | 6-32 | 90 | 60-150 |
| DG-300 | ≤200 | 8-40 | 160 | 100-250 |
| DG-400 | ≤260 | 10-45 | 220 | 160-350 |
| DG-500 | ≤300 | 12-50 | 280 | 220-450 |
| DG-600 | ≤350 | 15-55 | 355 | 300-500 |
Secondary and tertiary crushing for high-quality aggregate production.
Processing of metallic and non-metallic ores in mineral beneficiation.
Production of construction aggregates and road base materials.
Secondary crushing of limestone and raw materials for cement manufacturing.
All WSHT WSHT-DG series equipment undergoes rigorous quality inspection and load testing before delivery. We provide comprehensive after-sales service including installation guidance, operator training, and 24/7 technical support.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
