High-performance primary crushing equipment with 600-3200 TPH capacity. Features advanced cavity design, heavy-duty construction, and intelligent control for large-scale mining and aggregate operations.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
The PXZ Series Gyratory Crusher is a high-performance primary crushing equipment designed for large-scale mining and aggregate production operations. Featuring an advanced crushing cavity design, heavy-duty construction, and intelligent control systems, this crusher delivers exceptional throughput and reliability for the most demanding crushing applications.
The PXZ Series Gyratory Crusher represents the pinnacle of primary crushing technology, engineered for continuous heavy-duty operation in mining, quarrying, and large-scale aggregate production. With capacities ranging from 600 to 3200 tons per hour, these crushers are designed to handle the toughest feed materials including granite, basalt, iron ore, copper ore, and other hard and abrasive rocks.
Equipped with a robust main shaft assembly, optimized crushing cavity geometry, and an advanced lubrication and monitoring system, the PXZ series ensures maximum uptime and minimal maintenance requirements. The balanced design makes it suitable for both stationary and mobile crushing plant configurations.
The crushing cavity is adaptive to various crushing application conditions, delivering excellent crushing performance with optimal particle shape.
Manganese steel wear parts come as standard. Chromium fixed cone liner and bottom liner are available as optional components for enhanced durability.
Equipped with a positive pressure blower that effectively prevents dust from entering the eccentric device and drive assembly, extending bearing service life.
Ideal design for both mobile and fixed crushing operations, significantly reducing the impact force transmitted to the supporting frame.
| Unit Type | Feed Opening (mm) |
Discharge Port (mm) |
Max Feed Size (mm) |
Product Range (mm) |
Power (kw) |
Capacity (t/h) |
|---|---|---|---|---|---|---|
| PXZ0917 | 900 | 170 | ≤ 750 | 170-190 | 220 | 600-1000 |
| PXZ1221 | 1200 | 210 | ≤ 1000 | 210-230 | 315 | 1200-1800 |
| PXZ1422 | 1400 | 220 | ≤ 1200 | 210-230 | 450 | 1800-2500 |
| PXZ1623 | 1600 | 230 | ≤ 1350 | 210-240 | 630 | 2500-3200 |
Iron ore, copper ore, gold ore, and other metal ore primary crushing
Granite, basalt, limestone primary crushing for high-capacity aggregate plants
Limestone and raw material crushing for cement production lines
Suitable for integration into semi-mobile and mobile crushing plant configurations
All WSHT PXZ Series Gyratory Crushers undergo rigorous quality inspection and load testing before delivery. We provide comprehensive after-sales service including installation guidance, operator training, and 24/7 technical support.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
The WSHT-PF Impact Crusher is a high-efficiency crushing equipment that uses impact energy...

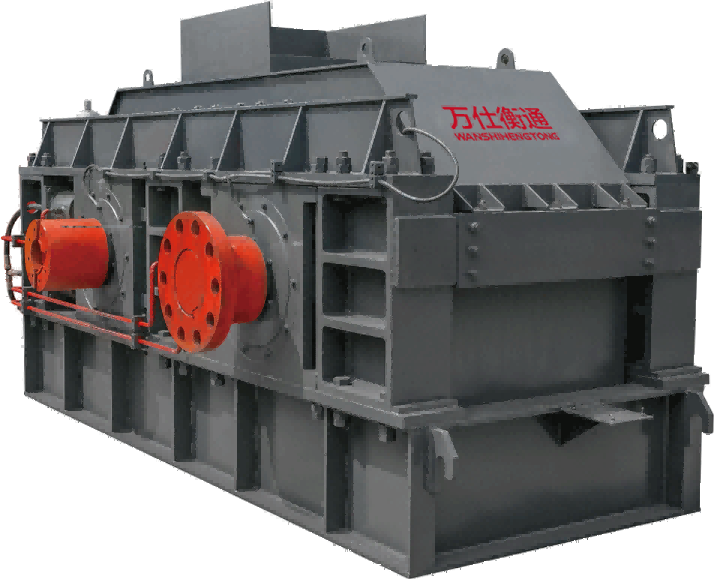

The WSHT-2PG Series Double Roll Crusher is a fine crushing equipment that uses two paralle...

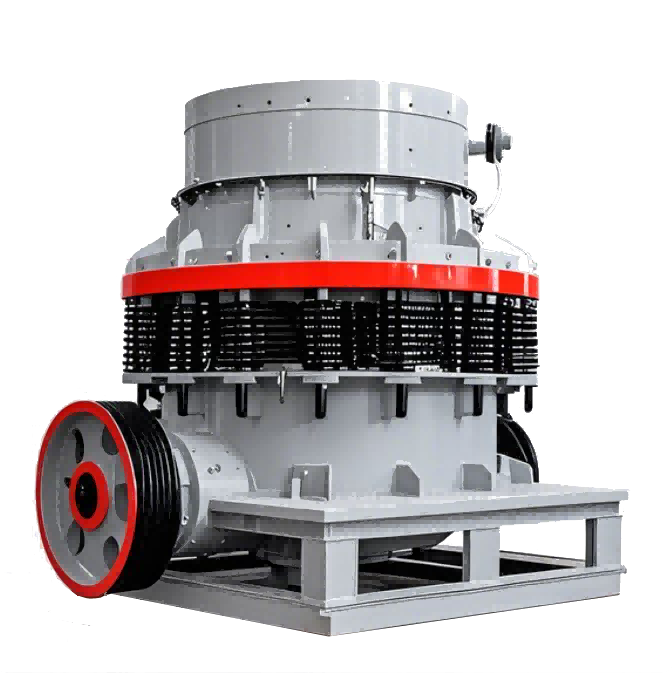

The WSHT-S Series Spring Cone Crusher is a classic crushing equipment featuring spring-loa...
