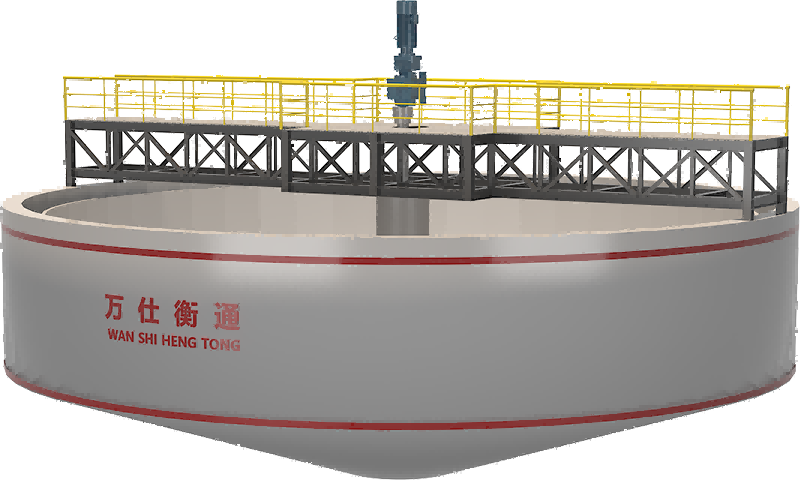

The WSHT GBJ Series Aerated Agitation Tank is purpose-built for slurry conditioning and aeration ahead of flotation circuits in mineral processing plants. By providing intense mechanical agitation combined with controlled air injection, it ensures thorough mixing of reagents, optimal particle suspension, and efficient gas dispersion. The aerated agitation tank is a critical component in gold cyanidation, flotation conditioning, and leaching circuits where uniform slurry properties are essential for process efficiency.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
Capacity: 0.58-45 m³ | Precision Engineered for Mining & Mineral Processing
The WSHT GBJ Series Aerated Agitation Tank is purpose-built for slurry conditioning and aeration ahead of flotation circuits in mineral processing plants. By providing intense mechanical agitation combined with controlled air injection, it ensures thorough mixing of reagents, optimal particle suspension, and efficient gas dispersion. The aerated agitation tank is a critical component in gold cyanidation, flotation conditioning, and leaching circuits where uniform slurry properties are essential for process efficiency.
Available Models: GBJ-0.58, GBJ-1.0, GBJ-1.5, GBJ-2.0, GBJ-3.0, GBJ-4.0, GBJ-5.0, GBJ-6.0, GBJ-8.0, GBJ-10, GBJ-16, GBJ-25, GBJ-45
Key Parameters: Effective volume: 0.58-45m³ | Impeller diameter: 200-650mm | Speed: 230-980 r/min | Power: 1.1-30KW
The aerated agitation tank uses a rotating impeller to create turbulent flow within the tank, keeping solid particles in suspension and promoting intimate contact between solids, liquids, and gases. Air is introduced through a hollow shaft or a separate sparger system, dispersing as fine bubbles throughout the slurry. In gold cyanidation applications, the tank provides oxygen for the cyanide leaching reaction while maintaining uniform distribution of cyanide and gold particles. Reagents are added at the feed point, and the conditioned slurry flows by gravity or pumping to the next process stage.
Contact WSHT Mining Group
For detailed specifications, pricing, or customized solutions, please contact our engineering team.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
