The WSHT-PM Gold Pan Mill (Edge Runner Mill) is a traditional gold grinding and amalgamation equipment widely used in small and medium-scale gold mining operations.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
The WSHT-PM Gold Pan Mill (Edge Runner Mill) is a traditional gold grinding and amalgamation equipment widely used in small and medium-scale gold mining operations....

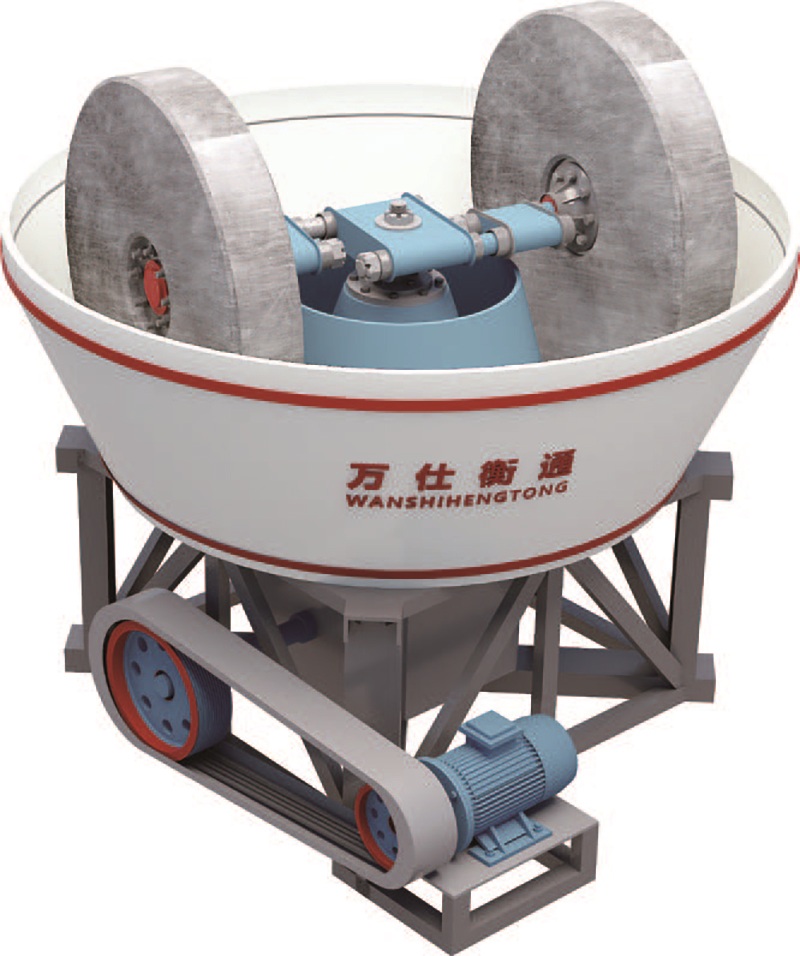

The WSHT-PM Gold Pan Mill (Edge Runner Mill) is a traditional gold grinding and amalgamation equipment widely used in small and medium-scale gold mining operations.
Featuring a heavy grinding wheel that rotates on a fixed pan, the PM mill simultaneously crushes and grinds gold ore while enabling mercury amalgamation for effective gold recovery.
Combines grinding and mercury amalgamation for simplified gold recovery.
Robust mechanical design with minimal moving parts for reliable operation.
Affordable equipment cost makes it ideal for small-scale mining operations.
Straightforward operation and maintenance with minimal training needed.
| Model | Pan Diameter (mm) | Feed Size (mm) | Power (kw) | Capacity (t/h) |
|---|---|---|---|---|
| PM-900 | 900 | ≤20 | 5.5 | 1-3 |
| PM-1100 | 1100 | ≤25 | 7.5 | 2-5 |
| PM-1300 | 1300 | ≤30 | 11 | 4-8 |
| PM-1600 | 1600 | ≤35 | 15 | 7-12 |
| PM-1800 | 1800 | ≤40 | 22 | 10-15 |
Gold ore processing for artisanal and small-scale mining operations.
Processing of placer and alluvial gold concentrates.
Mercury amalgamation gold recovery circuits.
Pilot testing and small-scale mineral processing.
All WSHT WSHT-PM series equipment undergoes rigorous quality inspection and load testing before delivery. We provide comprehensive after-sales service including installation guidance, operator training, and 24/7 technical support.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
The WSHT-GC Gold Centrifuge Concentrator is a high-efficiency gravity separation equipment...
The WSHT Gold Elution & Electrowinning Plant is a complete gold recovery system designed t...

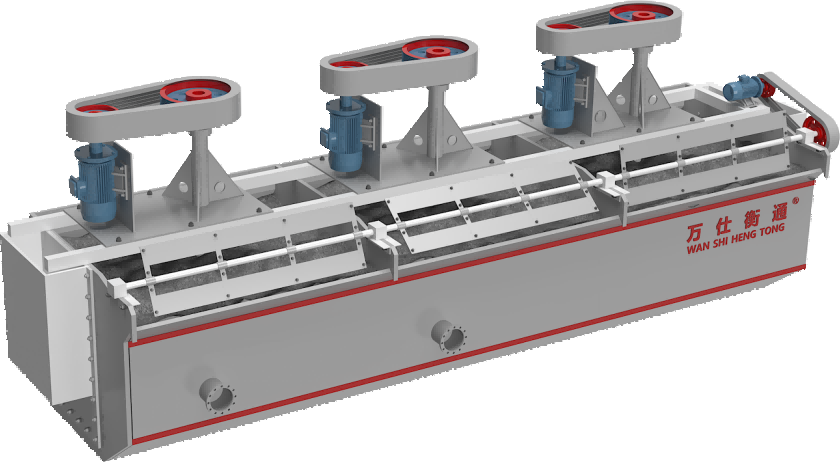

The WSHT-SF Flotation Machine is a mechanical agitation flotation equipment widely used fo...
