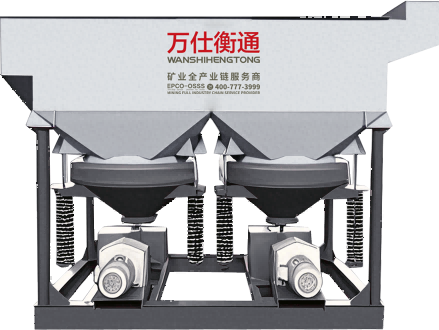

The WSHT-JC Jig Concentrator is a gravity separation equipment that uses pulsating water flow to stratize and separate materials by density in mineral processing applications.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
The WSHT-JC Jig Concentrator is a gravity separation equipment that uses pulsating water flow to stratize and separate materials by density in mineral processing applications....
The WSHT-JC Jig Concentrator is a gravity separation equipment that uses pulsating water flow to stratize and separate materials by density in mineral processing applications.
With adjustable stroke and frequency, the JC series efficiently recovers free gold, diamonds, and other heavy minerals from alluvial and hard rock deposits.
Pulsating water bed stratifies materials by specific gravity for efficient mineral recovery.
Variable stroke length and pulsation frequency for different material characteristics.
Automatic concentrate discharge enables continuous processing with minimal downtime.
Recirculating water system reduces fresh water consumption during operation.
| Model | Jig Area (m²) | Stroke (mm) | Power (kw) | Capacity (t/h) |
|---|---|---|---|---|
| JC-500×500 | 0.25 | 10-25 | 1.5 | 2-5 |
| JC-600×900 | 0.54 | 12-30 | 3 | 5-10 |
| JC-900×900 | 0.81 | 12-30 | 5.5 | 8-15 |
| JC-1200×1200 | 1.44 | 15-35 | 7.5 | 15-30 |
Free gold recovery from alluvial and hard rock deposits.
Diamond recovery from kimberlite and alluvial sources.
Gravity concentration of tin and tungsten ores.
Pre-concentration of iron ore in beneficiation circuits.
All WSHT WSHT-JC series equipment undergoes rigorous quality inspection and load testing before delivery. We provide comprehensive after-sales service including installation guidance, operator training, and 24/7 technical support.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
