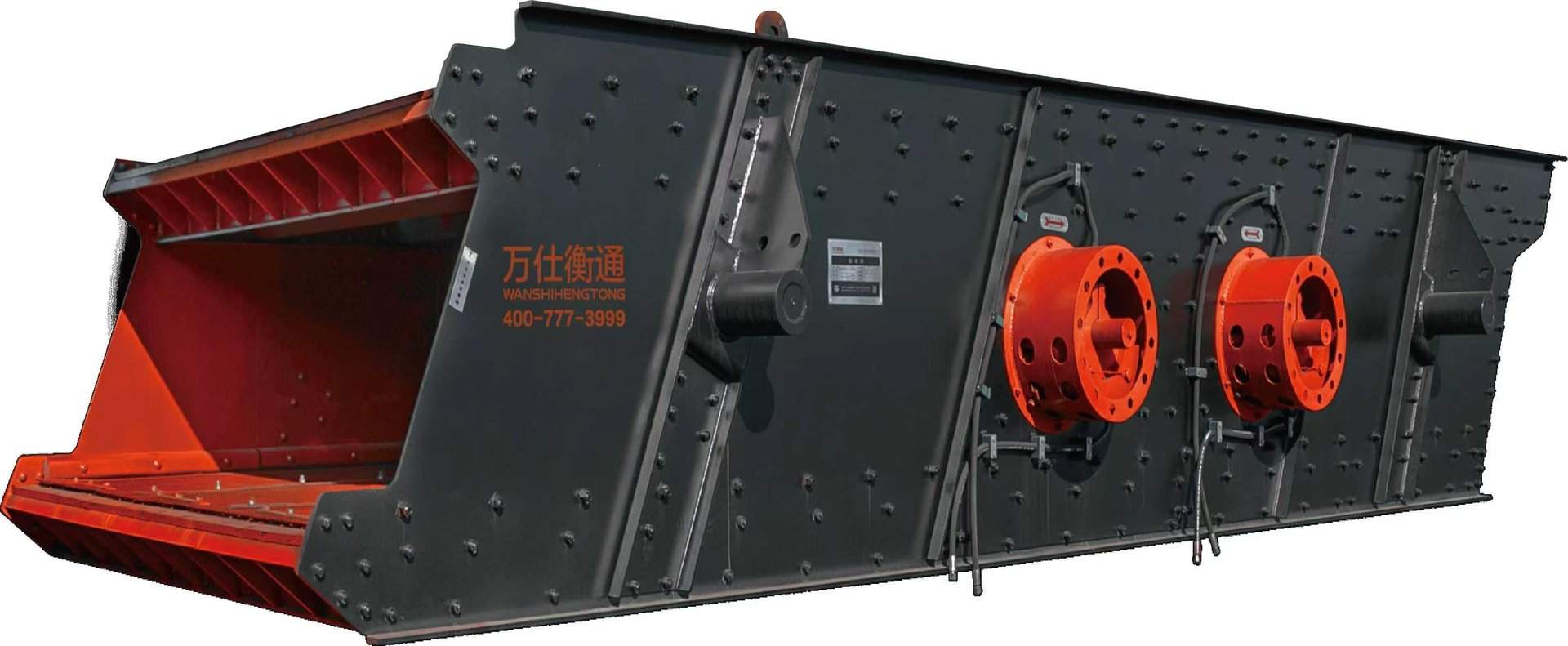

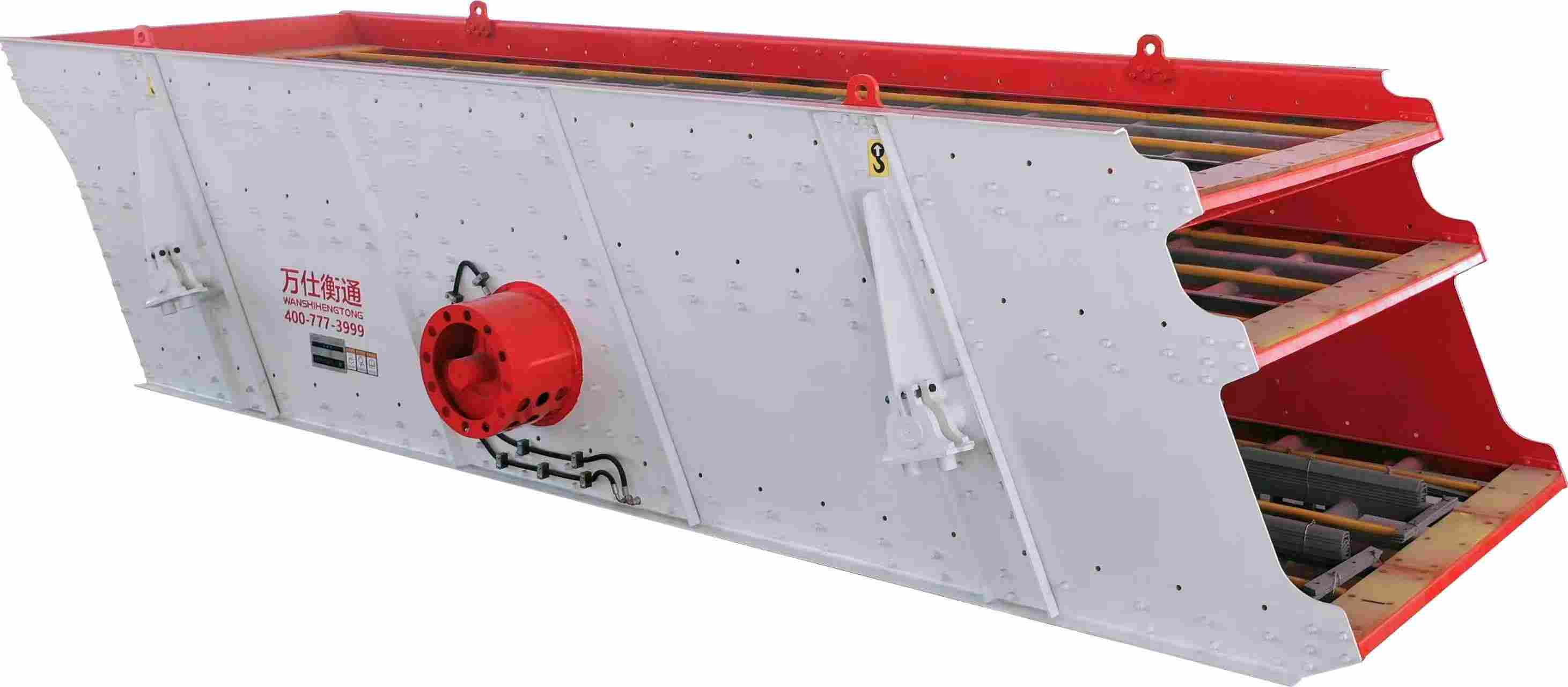

YZR Series Thin Oil Heavy Vibration Synchronous Vibrating Screen – Full Product Content
01. Product Introduction
The YZR Series Thin Oil Strong Vibration Synchronous Vibrating Screen is a new-generation heavy-duty screening device tailored for large-scale mines, quarries, aggregate processing and construction waste recycling projects. Breaking the limitations of traditional grease-lubricated vibrating screens, this equipment adopts advanced thin-oil circulating lubrication and forced synchronous vibration technology, delivering super strong excitation force, ultra-stable operation and extremely low failure rate under long-term heavy-load working conditions.
As the core classification equipment of closed-circuit crushing and screening systems, it is widely applicable for grading, screening and dedusting of granite, basalt, river pebble, limestone, various ores and recycled aggregates. Matched with jaw crushers, cone crushers and impact crushers, it forms a complete high-efficiency and high-yield stone production line. Featuring reliable structure, large processing capacity and long service life, the YZR vibrating screen has become the preferred screening equipment for medium and large mining & aggregate projects worldwide.
02. Core Performance Features
✅ Advanced Thin Oil Circulating Lubrication System
Equipped with professional thin-oil lubricated vibrators, the equipment realizes full bearing immersion lubrication. Compared with traditional grease lubrication, it achieves faster heat dissipation, lower operating temperature and no frequent refueling. It thoroughly solves common problems like bearing overheating, burnout and short service life, greatly extending the maintenance cycle and reducing overall operating costs.
✅ Powerful Synchronous Vibration & Super Large Capacity
Adopting a forced synchronous vibration structure, the screen delivers stable amplitude and strong excitation force. The scientific material jumping track effectively avoids material accumulation and screen blockage. It supports 24-hour continuous heavy-duty operation, significantly improving single-machine screening throughput, perfectly matching high-capacity modern aggregate production lines.
✅ Heavy-Duty Integrated Wear-Resistant Structure
The screen box is fabricated with high-strength steel plates and integral welding technology, featuring high overall rigidity and excellent shock resistance. All key connecting parts adopt high-strength anti-loosening bolts to prevent cracking and deformation during long-term high-frequency vibration. The replaceable wear-resistant screen mesh ensures long service life and low replacement cost.
✅ High Screening Precision & Flexible Adjustment
The vibration amplitude and frequency are freely adjustable to adapt to different material properties and production demands. The multi-layer screen design realizes one-time classification of multiple specification finished materials, effectively controlling particle size deviation, avoiding material mixing, and ensuring stable and high-standard screening quality.
✅ Low Noise & Environment-Friendly Operation
Optimized vibration damping structure effectively reduces vibration transmission and operating noise. The fully sealed integral structure prevents dust overflow, complying with international environmental protection standards. It is highly adaptable to open-air quarry operations and closed workshop production scenarios.
03. Product Models & Technical Parameters
The YZR series covers a full range of small, medium and large specifications, with hourly processing capacity ranging from 80t to 600t. It supports 1–4 layers of screen mesh configuration, and can be customized according to raw material hardness, feeding size, finished particle size and actual site conditions to meet personalized screening demands.
📋 Standard YZR Series Core Parameter Table
✨ Core Parameter Advantages
- Wide Compatibility: Suitable for screening hard rock, medium-soft rock and recycled construction aggregate
- Stable Operation: Synchronous vibrator outputs uniform vibration without offset or material deviation
- Strong Adaptability: Adjustable amplitude to cope with wet, sticky and diverse materials
- Easy Maintenance: Standardized modular structure for convenient installation, debugging and daily upkeep
- Customized Support: Flexible customization of screen size and layer numbers for exclusive production solutions
All YZR series models adopt a unified standardized thin-oil circulating lubrication system, featuring low operating temperature, stable synchronous vibration and ultra-low failure rate. Compared with traditional vibrating screens, it effectively reduces daily maintenance frequency and long-term operating costs, serving as reliable core screening equipment for large-scale crushing and screening plants.
04. Product Summary
The YZR Series Thin Oil Strong Vibration Synchronous Vibrating Screen is an upgraded heavy-duty screening solution designed for modern high-yield and high-standard aggregate production lines. It perfectly solves the common pain points of traditional screening equipment, such as high failure rate, poor heat dissipation, short service life and unstable screening effect.
Equipped with advanced thin-oil lubrication technology, powerful synchronous vibration performance and durable heavy-duty structure, the equipment adapts to various harsh mining and quarry working conditions. It can effectively improve the overall efficiency of crushing and screening lines
