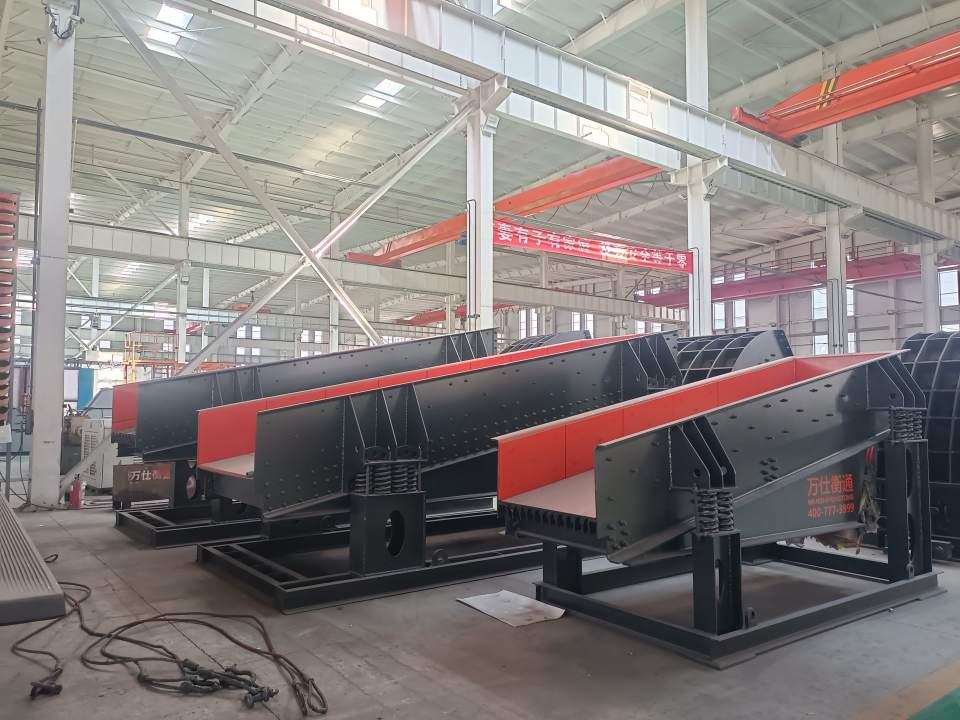

Wanshihengtong Vibrating Feeder | Heavy Duty Mining Vibrating Feeding Machine
01. Product Introduction
Wanshihengtong vibrating feeder is a heavy-duty, high-efficiency industrial feeding machine specially developed for mining, quarry, aggregate crushing, sand making and construction waste recycling projects. As the front-end core feeding equipment of the entire crushing and screening line, this mining vibrating feeder can continuously, uniformly and quantitatively deliver bulk, lump and granular materials from the silo to the primary crushing host.
Different from ordinary feeding equipment, Wanshihengtong stone vibrating feeder adopts a grizzly bar pre-screening structure, which can effectively sieve out soil, fine powder and tiny impurities mixed in raw materials in advance. It greatly reduces the feeding pressure of the jaw crusher and impact crusher, avoids material blockage, and significantly improves the overall working efficiency of the crushing plant. With reinforced thickened steel body, high-stability vibration exciter and shock-absorbing spring structure, the vibrating feeding machine can adapt to various harsh mining working environments, featuring stable vibration, large throughput and long continuous operation time. It is an essential supporting machine for medium and large-scale stone crushing production lines.
02. Core Performance Features
Stable & Uniform Quantitative Feeding
Equipped with high-precision vibration exciter, the vibrating feeder runs with stable frequency and uniform amplitude. It realizes continuous and balanced material conveying, effectively solving the problems of intermittent feeding, material accumulation and uneven material supply, ensuring stable and efficient operation of downstream crushing equipment.
Built-in Grizzly Pre-screening Function
The unique bar-type tank design automatically screens out fine materials and silt before crushing. It prevents fine powder from occupying the crushing chamber, improves crushing efficiency, reduces crusher wear, and optimizes finished aggregate quality.
Heavy-duty & Anti-wear Structure
The whole machine adopts thick steel plate integral welding and reinforced side plate structure. The feeding tank is equipped with wear-resistant protective parts, which can resist strong impact and friction of large lump ore. It has strong load-bearing capacity and durable performance, adapting to long-term heavy-load mining production.
Adjustable Feeding Capacity
The vibration amplitude and feeding speed can be adjusted freely according to material hardness, particle size and actual output demand. It supports precise quantitative feeding, flexible matching of different production line tonnages, and meets diversified production standards.
Low Failure Rate & Easy Maintenance
Reasonable mechanical structure, fewer vulnerable parts and super stable vibration motor operation. The equipment runs with low noise and low energy consumption. Daily inspection, lubrication and parts replacement are simple and fast, greatly reducing later operation and maintenance costs.
Strong Compatibility & Wide Application
It can be perfectly matched with jaw crusher, cone crusher, impact crusher and vibrating screen. It is suitable for fixed crushing lines and mobile crushing stations, covering quarry aggregate, ore processing, construction waste recycling and various bulk material conveying scenarios.
03. Working Principle
Wanshihengtong vibrating feeder uses a vibration motor as the excitation source. Through the synchronous and reverse rotation of the dual eccentric shafts, powerful and stable vibration force is generated. The materials in the feeding trough are continuously thrown and moved forward in a parabolic trajectory, realizing automatic, uniform and quantitative feeding. During the vibration conveying process, fine impurities and powdery materials are screened out through the gap of the grizzly bars, and qualified lump materials are stably and evenly sent to the crusher. The whole feeding process is automatic, smooth and efficient, realizing intelligent and unmanned front-end feeding of the mining production line.
04. Application Scope
- Quarry Aggregate Production: Front-end continuous feeding and pre-screening for stone crushing and screening production lines.
- Mineral Processing Plant: Quantitative feeding for metal ore, non-metal ore and coal raw material crushing.
- Construction Waste Recycling: Stable feeding supporting fixed and mobile crushing recycling lines.
- Sand Making Production Line: Uniform feeding equipment for manufactured sand and river sand processing projects.
- Industrial Bulk Material Conveying: Quantitative conveying of gravel, mineral powder and various granular materials.
05. Technical Parameters
Wanshihengtong vibrating feeder covers full-series models from small, medium to heavy-duty, with hourly output ranging from 50 tons to 500 tons, fully meeting different scale crushing project needs.
Model | Max Feeding Size | Capacity (t/h) | Motor Power (kW) | Vibration Frequency (r/min) |
|---|
GZ3 | 150mm | 50-80 | 2.2×2 | 960 |
GZ4 | 200mm | 80-120 | 3×2 | 960 |
GZ5 | 250mm | 120-200 | 5.5×2 | 960 |
GZ6 | 300mm | 200-300 | 7.5×2 | 960 |
GZ7 | 350mm | 300-500 | 11×2 | 960 |
Note: All parameters are for reference only. Actual capacity is affected by material density, hardness and working conditions. Customized design and OEM service are available.
06. Product Summary
Wanshihengtong vibrating feeder is a high-stability, high-efficiency and low-consumption professional mining feeding equipment. It perfectly integrates uniform feeding, grizzly pre-screening and anti-blocking functions, effectively solving common problems such as uneven feeding, crusher blockage and low line efficiency in traditional production lines.
With heavy-duty wear-resistant structure, adjustable feeding volume, stable vibration performance and ultra-low maintenance cost, this vibrating feeding machine has become the preferred supporting equipment for global quarries, mines and construction waste recycling plants. Wanshihengtong provides one-stop services including model selection consultation, production line matching scheme design, factory direct supply and after-sales technical support, helping customers build high-efficiency and profitable aggregate processing production lines.
