1. Product Introduction

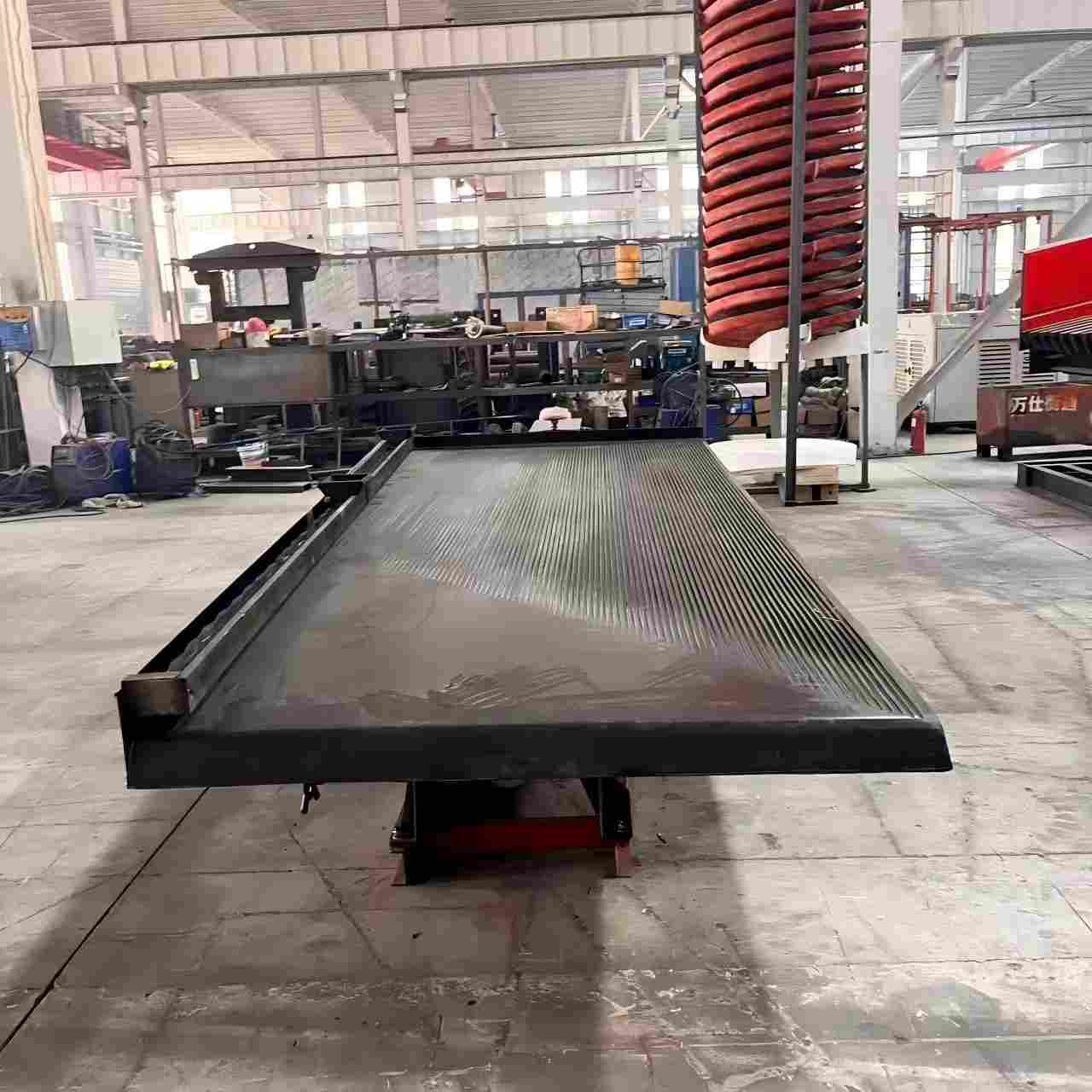

The 6S shaking table, independently developed by Wanshihengtong, is a professional gravity separation mineral processing machine widely used in fine-grained and micro-fine ore beneficiation. Different from ordinary sorting equipment, the 6S shaking table adopts advanced fiberglass wear-resistant deck and optimized crank linkage transmission structure, realizing precise layered separation according to mineral specific gravity difference.
It is mainly applicable for gold, tungsten, tin, tantalum-niobium, chromite, manganese and other non-ferrous and rare metal ores. The equipment can independently complete roughing, cleaning and scavenging operations, and discharge concentrate, middling and tailings at one time. With flexible adjustment of stroke, frequency and deck slope, it can stably process coarse sand, fine sand and slime materials, becoming the core mainstream equipment in modern gravity beneficiation production lines.
2. Performance Features
High Wear-resistant Fiberglass Deck
The 6S shaking table adopts integral fiberglass molding deck, which is anti-corrosion, anti-oxidation and highly wear-resistant. The precise groove design improves material stratification efficiency, avoids mineral residue, and greatly extends service life compared with traditional iron decks.
Multi-parameter Flexible Adjustment
Stroke, vibration frequency and transverse slope are all adjustable. Users can freely set parameters according to ore density, particle size and processing capacity, perfectly adapting to coarse sand, fine sand and slime mixed ore materials.
Super High Enrichment & Recovery Rate
Through scientific water flow layering and mechanical shaking force separation, valuable fine-grained minerals are fully recovered. The concentrate grade is high, the tailings loss rate is low, and the overall mineral recovery rate is significantly improved.
Energy-saving & Easy Maintenance
Low power design reduces production operating costs. The whole machine has simple structure, fewer wearing parts and convenient daily maintenance. No complicated auxiliary equipment is required, greatly reducing site operation difficulty.
One-time Multi-product Separation
It can stably separate qualified concentrate, middling and tailings at one time, realizing integrated roughing and cleaning, which improves the overall beneficiation efficiency and simplifies the production line layout.
3. Product Models & Technical Parameters
Wanshihengtong 6S series shaking tables adopt standardized industrial design, covering mainstream models suitable for small, medium and large beneficiation plants. With reasonable structural configuration and wide adaptability, the equipment can meet different processing capacity requirements from small test beneficiation to large-scale industrial production.
Parameter Item | 6S Shaking Table Standard Data |
|---|
Deck Size (Length×Width) | 4500×1800mm |
Adjustable Stroke | 8-22mm |
Vibration Frequency | 240-320 times/min |
Deck Inclination Angle | 0°-8.5° |
Feeding Particle Size | 0.02-2mm |
Processing Capacity | 0.2-1.5 t/h |
Slurry Concentration | 15%-30% |
Matching Motor Power | 1.1kW |
Machine Weight | 1350kg |
All 6S shaking table models support personalized parameter adjustment and customized configuration according to customer ore characteristics, site environment and output requirements. It can be used independently or combined with jig machines, spiral chutes and centrifugal separators to form a complete gravity separation production line.
4. Product Summary
The Wanshihengtong 6S shaking table is a mature, efficient and stable gravity separation beneficiation equipment specially optimized for fine-grained mineral processing. It solves the problems of low recovery rate, serious mineral loss and short service life of traditional sorting machines. With wear-resistant fiberglass deck, stable transmission performance, flexible adjustable parameters and low energy consumption advantages, it is suitable for gold, tungsten, tin, tantalum-niobium and various rare metal ore dressing.
As the most widely used core equipment in gravity separation plants, the 6S shaking table features high beneficiation accuracy, large processing capacity and easy operation. It can effectively improve mineral utilization rate and create higher economic benefits for mining projects. We provide standardized equipment and professional customized beneficiation solutions for global customers, supporting one-stop project design and after-sales service.
