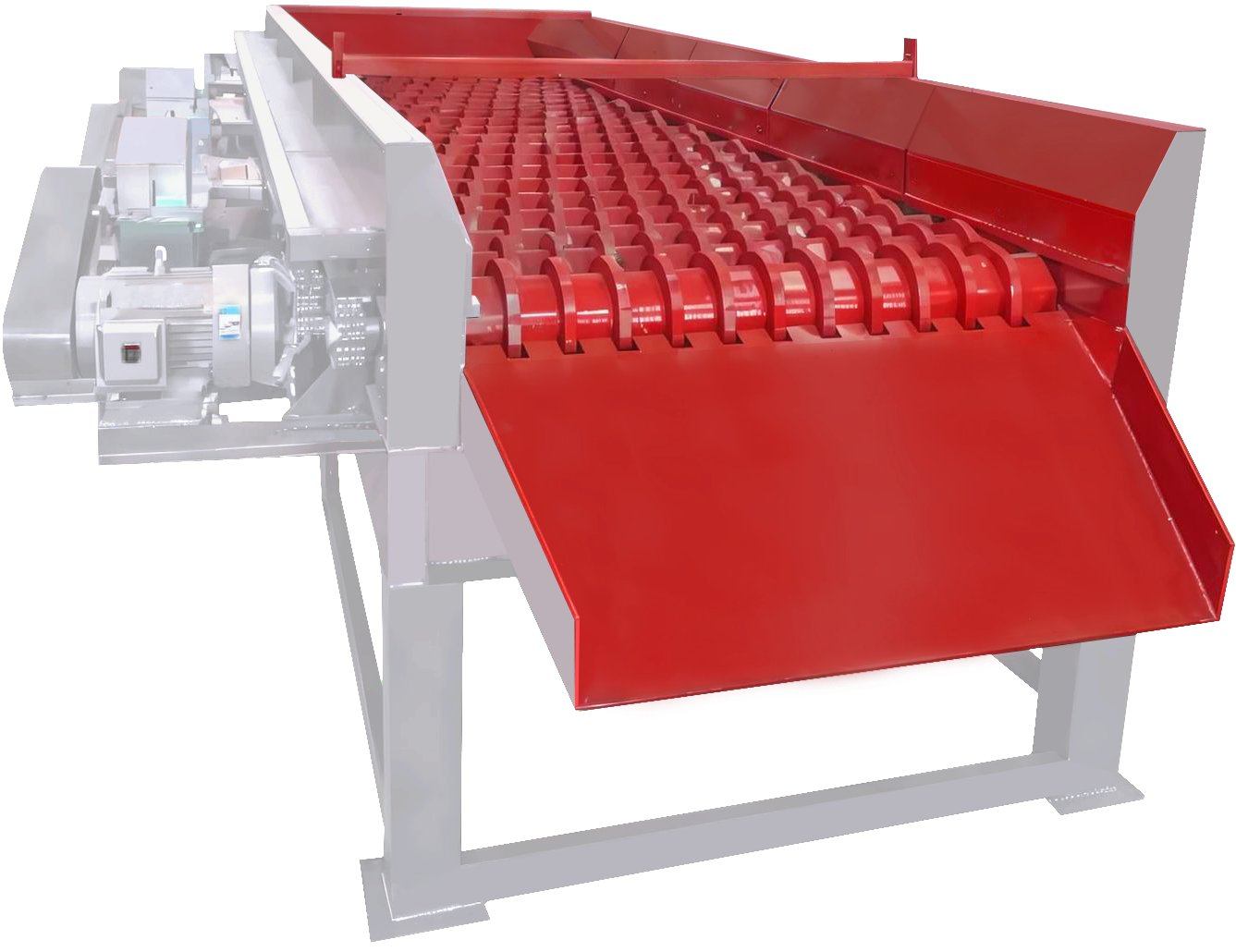

Mud-Stone Separator

Mud-Stone Separator is anti-clogging pre-screening equipment specially designed for sticky, high-mud mixed materials. It adopts differential-speed rotating roller discs. Materials are continuously tumbled and conveyed. Mud, fine soil and small particles fall through roller gaps, while clean stones are transported forward. It works without water and solves the blocking problem of traditional vibrating screens and trommel screens. Widely used as front pretreatment equipment for mines, sand aggregate plants, construction waste recycling. It effectively reduces crusher blockage and improves whole line production efficiency.

1. Excellent Anti-Clogging Performance
Interleaved roller disc self-cleaning structure. Even wet, sticky clay materials will not stick and block, stable continuous operation in high-mud working conditions.

2. No Water Required, Low Operation Cost
Dry separation mode, no water consumption. Roller gap adjustable to control separation size flexibly, mud separation efficiency reaches over 90%.

3. Heavy Duty & Wear Resistant
Roller discs made of wear-resistant alloy steel. Independent drive for each group of rollers, stable transmission, strong bearing capacity, suitable for large feeding lump size.

4. Greatly Protect Downstream Crushers
Remove mud and fine materials in advance, avoid mud packing inside crushing cavity, reduce liner wear, increase crusher output and extend service life.

5. Modular Design & Easy Maintenance
Single roller unit can be replaced separately. Optional fixed type or mobile wheeled chassis for flexible site transfer, adapt to various mining sites.
