Our FRP hydrocyclone group performs reliable classification and desliming for placer gold processing plant. Modular combined design, multiple models for different slurry flow rate. Contact us for technical sheet and quotation.
Primary Keywords Hydrocyclone group, Mineral processing hydrocyclone, FRP hydrocyclone, Gold washing hydrocyclone unit
Long‑tail Keywords Hydrocyclone group for placer gold desliming, FX series hydrocyclone, Hydrocyclone for ore classification, Alluvial gold processing hydrocyclone cluster

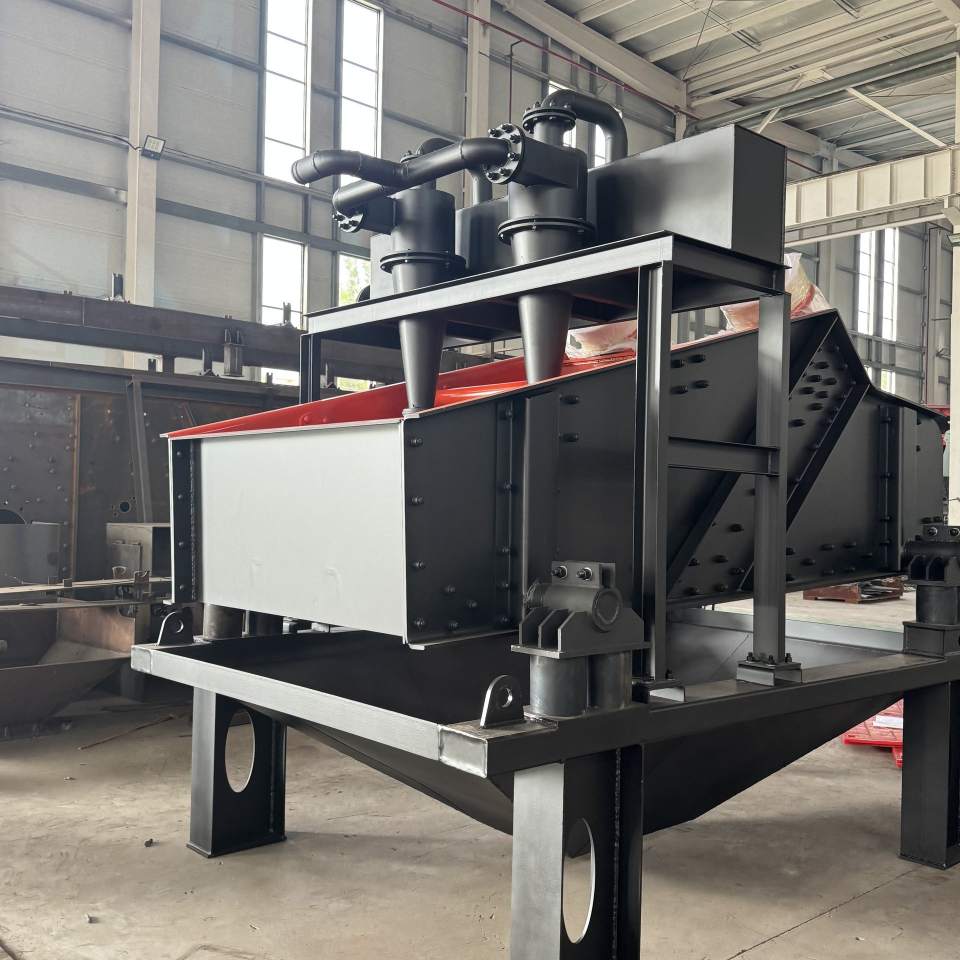

Hydrocyclone group is modular combined classification and desliming equipment for mineral processing. Several hydrocyclone units are installed in parallel on one support frame, sharing feeding box, overflow and underflow pipelines. Driven by slurry pump, it uses centrifugal force to separate coarse particles, fine mud and valuable heavy minerals, widely used in placer gold washing plant.
Different from spiral chute and sluice box which complete gravity separation directly, hydrocyclone group works as pre‑processing equipment. Ore slurry enters cyclones tangentially under pressure. Coarse heavy particles discharge from underflow outlet and go to sluice box, vibrating screen or spiral chute for gold recovery. Fine mud and light gangue flow out from overflow outlet as tailings, greatly improve final gold recovery rate.
| Model | Cylinder Diameter(mm) | Max Feeding Size(mm) | Feed Pressure(MPa) | Capacity(m³/h) | Classification Size(μm) | Material |
|---|---|---|---|---|---|---|
| FX‑100 | 100 | ≤1 | 0.06‑0.35 | 5‑12 | 20‑100 | FRP body with PU wear‑resistant lining |
| FX‑200 | 200 | ≤2 | 0.06‑0.25 | 17‑38 | 28‑80 | FRP body with PU wear‑resistant lining |
| FX‑250 | 250 | ≤2.5 | 0.06‑0.25 | 24‑53 | 30‑82 | FRP body with PU wear‑resistant lining |
| FX‑300 | 300 | ≤3 | 0.06‑0.25 | 40‑100 | 36‑90 | FRP body with PU wear‑resistant lining |
Note: Hydrocyclone group can assemble 2‑8 pieces of single cyclone according to customer’s actual slurry flow requirement. Must be matched with corresponding slurry pump for normal operation.
‑ Pre‑desliming and classification for placer gold ore ‑ Concentrate and separate heavy mineral slurry ‑ Tailings re‑processing to recycle fine residual gold ‑ Cooperate with trommel screen, sluice box, vibrating screen, spiral chute, shaking table to build complete alluvial gold processing plant
Q: Does hydrocyclone group need motor for separation? A: The cyclone itself has no motor. Separation depends on slurry pressure provided by slurry pump.
Q: How many cyclones should I combine for my mine? A: It depends on your total slurry flow rate and feeding particle size. Please offer your mine data, we configure proper group solution for you.
Q: What is the difference between hydrocyclone and spiral chute? A: Hydrocyclone completes classification and desliming by centrifugal force. Spiral chute finishes gravity separation and mineral concentration. They are usually used together to improve fine gold recovery.
