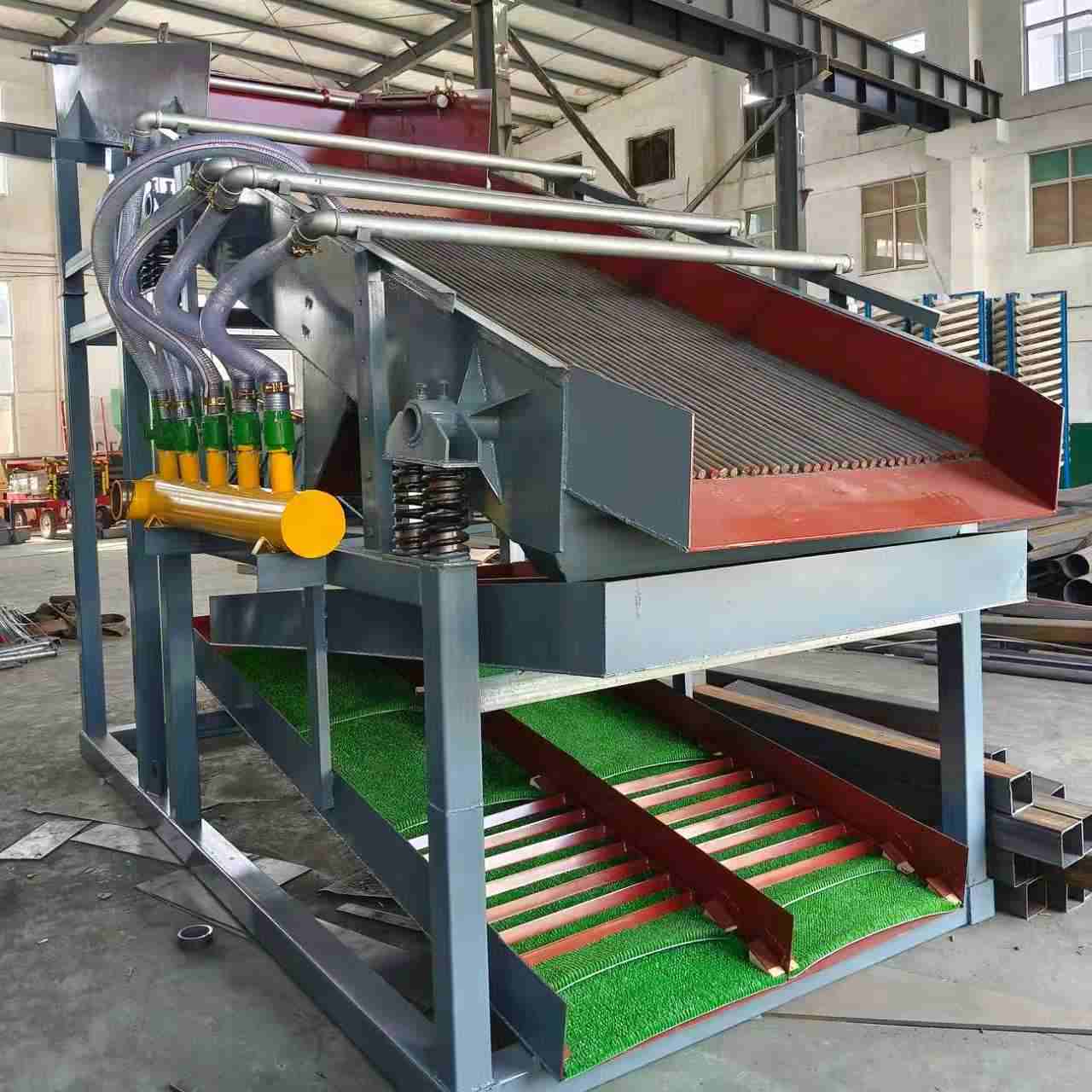

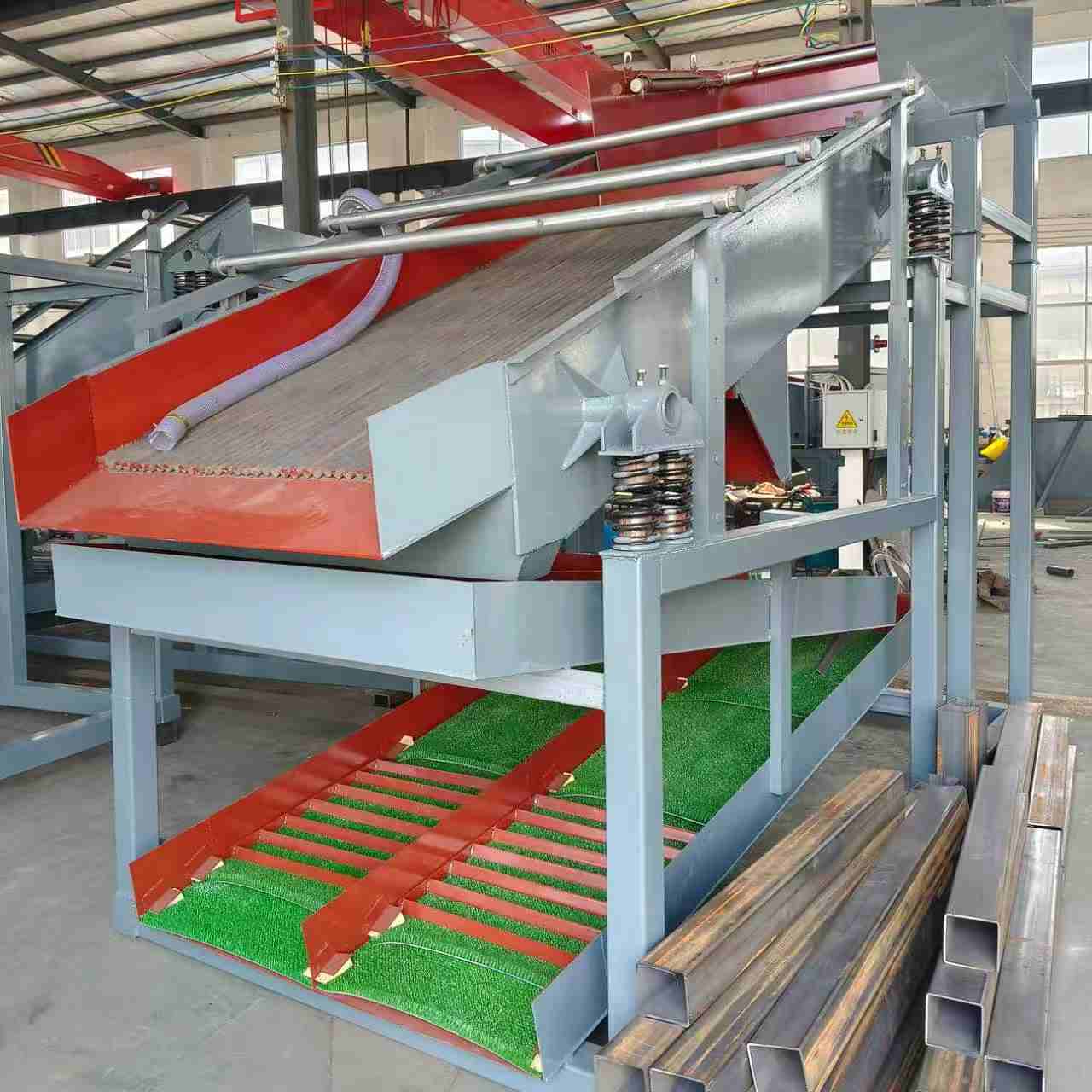

Our 1540 vibrating screen gold washing machine is a heavy-duty screening and gold recovery system designed for placer/alluvial gold mining. The 1540 vibrating screen adopts double vibration motors, large processing capacity, stable operation and easy maintenance. It can separate gravel, sand and fine gold-bearing materials efficiently, matching with sluice box, gold centrifugal concentrator for complete gold recovery line. Suitable for small & medium scale gold mining projects in Africa, including Tanzania, Zambia, Sudan, Madagascar. Available in stationary and mobile versions.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
1540 vibrating screen gold mining machine is a heavy-duty high-output screening device built for placer gold and alluvial gold washing. Designed for medium-scale gold mining sites, it efficiently separates stones, gravel and muddy impurities from gold-bearing sand. Compact structure, stable operation and flexible mobility make it an ideal core screening equipment for modern gold washing plants.
Max Hourly Capacity: 120–150 TPH
| Item | Specification |
|---|---|
| Model | 1540 Gold Mining Vibrating Screen |
| Processing Capacity | 120–150 Tons Per Hour |
| Screen Size | 4000×1500mm |
| Screen Beam | 100mm Seamless Square Tube |
| Side Plate | 10mm Thick Q345B Steel |
| Vibration Motor | Famous Brand, Stable Performance |
| Screen Layer | 1 / 2 Layers (Customizable) |
| Application | Alluvial Gold / Placer Gold Washing |
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
The WSHT-YK Series Circular Vibrating Screen is a high-efficiency screening equipment desi...
The WSHT-TS Trommel Screen is a cylindrical screening equipment that separates materials b...
The WSHT-MS Stone Material Separator is specialized equipment designed for separating and ...
Our engineering team will design a tailored solution based on your site conditions, ore characteristics and production targets. Bilingual project management with end-to-end support.
