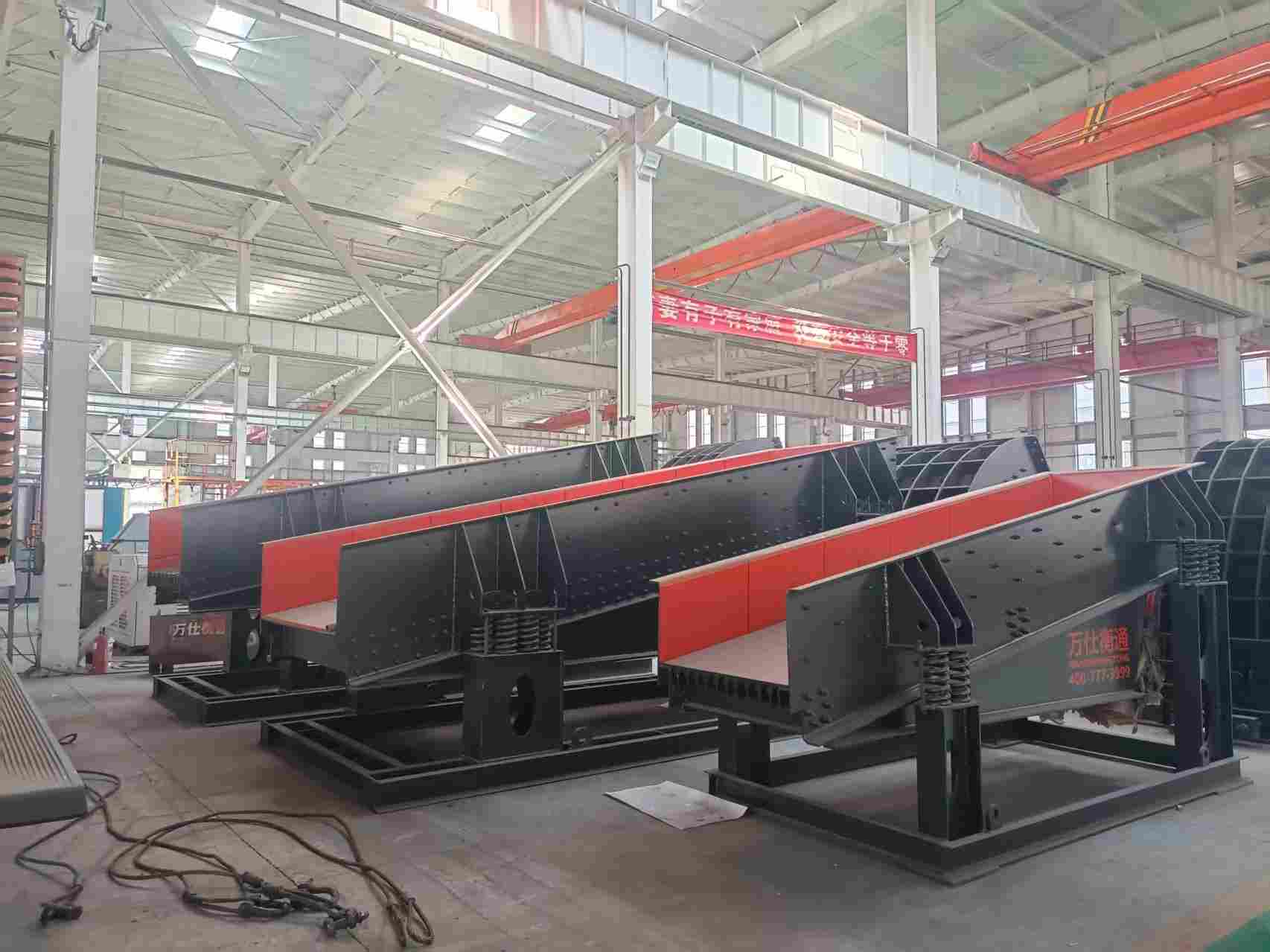

Wanshihengtong Vibrating Feeder | Heavy Duty Mining Stone Vibrating Feeding Machine
01. Product Introduction
Wanshihengtong vibrating feeder is an indispensable auxiliary feeding equipment in stone crushing, quarry mining and mineral processing production lines. As the front‑end feeding device, this vibrating feeding machine is mainly used to continuously and uniformly transport bulk, granular and lump materials from the silo to the crushing and screening system.
Matched perfectly with jaw crushers, cone crushers and impact crushers, the mining vibrating feeder can pre-screen fine materials to avoid fine powder and small stone entering the crushing chamber, effectively improving crusher working efficiency and reducing equipment blockage. With strong vibration excitation force, stable feeding capacity and heavy‑duty body structure, Wanshihengtong stone vibrating feeder adapts to various harsh mining environments and ensures long-term stable operation of the entire production line.
02. Core Performance Features
Stable & Uniform Feeding Performance
The vibrating feeder adopts professional vibration excitation structure, with stable vibration frequency and uniform feeding volume. It avoids intermittent feeding and material accumulation, ensuring continuous and balanced operation of the downstream crushing equipment.
Built‑in Pre‑screening Function
The tank bottom is designed with screen bar structure, which can automatically screen out soil, fine powder and small granular materials in advance. It reduces the feeding pressure of the crusher, improves aggregate quality and increases overall production efficiency.
The whole machine adopts thickened steel plate welding and reinforced side plates. The feeding trough is equipped with wear‑resistant protective layer, which is resistant to impact and abrasion of large lump ore. The service life is greatly extended under long‑term heavy‑load working conditions.
Adjustable Feeding Volume
Users can flexibly adjust the vibration amplitude and feeding speed according to different material properties and production capacity requirements, realizing precise quantitative feeding and meeting diverse production needs.
Low Failure & Easy Maintenance
Reasonable mechanical structure, few vulnerable parts and stable motor operation. It features low noise, low energy consumption and convenient daily inspection and maintenance, greatly reducing later operating costs.
Wide Application Compatibility
Suitable for all kinds of stone, ore, coal, gravel and bulk materials. It can be freely matched with fixed crushing lines and mobile crushing stations, widely used in quarries, mines, construction waste recycling and aggregate processing projects.
03. Working Principle
Wanshihengtong vibrating feeder uses a vibration motor as the excitation source. Through high-frequency vibration, the materials in the trough are continuously thrown forward and circulated, realizing automatic, uniform and quantitative feeding. During the vibration process, fine impurities and powdery materials are screened out through the bottom gap, while qualified lump materials are stably sent to the crusher. The whole feeding process is smooth, efficient and automatic, realizing intelligent material conveying for the mining production line.
04. Application Scope
- Quarry Aggregate Production: Front-end uniform feeding for stone crushing and screening line.
- Mineral Processing Plant: Continuous feeding and pre-screening for metal ore and non-metal ore crushing.
- Construction Waste Recycling: Stable feeding for mobile and fixed crushing recycling lines.
- Coal & Bulk Material Handling: Quantitative conveying of coal, gravel and industrial bulk materials.
- Highway & Infrastructure Projects: Aggregate processing and raw material conveying for engineering projects.
05. Technical Parameters
Wanshihengtong vibrating feeder covers multiple models from small to heavy-duty type, with feeding capacity ranging from 50t/h to 500t/h, meeting different production scale requirements.
Model | Max Feeding Size | Capacity (t/h) | Power (kW) | Vibration Frequency |
|---|
GZ3 | 150mm | 50-80 | 2.2×2 | 960r/min |
GZ4 | 200mm | 80-120 | 3×2 | 960r/min |
GZ5 | 250mm | 120-200 | 5.5×2 | 960r/min |
GZ6 | 300mm | 200-300 | 7.5×2 | 960r/min |
GZ7 | 350mm | 300-500 | 11×2 | 960r/min |
Note: All parameters are for reference. Actual capacity is affected by material hardness, bulk density and working conditions. Customized models are available.
06. Product Summary
Wanshihengtong vibrating feeder is a professional and reliable mining vibrating feeding machine for modern crushing and screening lines. It integrates uniform feeding, pre-screening and anti-blocking functions, effectively solving uneven feeding and crusher blocking problems.
With heavy-duty structure, stable vibration performance, adjustable feeding volume and low maintenance cost, the stone vibrating feeder has become essential supporting equipment for quarries, mines and construction waste recycling plants. Wanshihengtong provides customers with matched feeding equipment and complete production line configuration solutions to ensure high-efficiency and stable operation of the entire mineral processing and aggregate production system.
