Mobile Plants

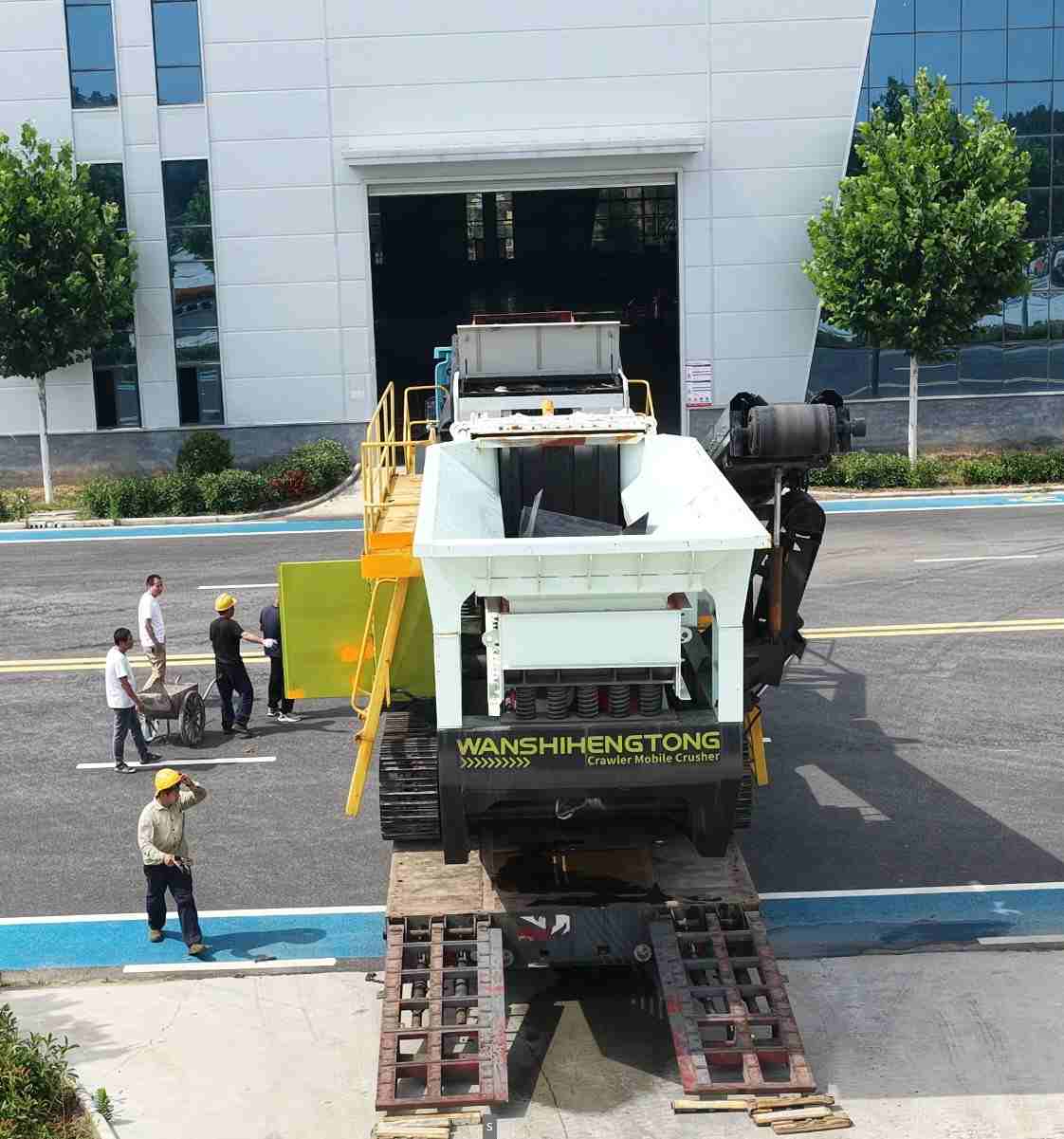

Crawler Mobile Counterattack Crushing Station

Name: 履带式移动式反击破碎站
Brand: Mobile Plants
SKU: 319
Availability: InStock
Rating: 4.8 (12 reviews)

Capacity: 150-400t/h

Wanshihengtong mobile impact crushing station is a wheel‑type mobile crushing‑screening integrated solution, taking heavy‑duty impact crusher as the core host. It integrates feeding, crushing, screening and conveying on one mobile chassis. Without complicated foundation installation, the whole unit can be towed to different working sites quickly. It delivers high‑quality cubic finished aggregates, widely applied for medium‑hard rock crushing, quarry aggregate processing, construction waste recycling, highway and infrastructure projects. It can work independently or cooperate with mobile jaw crusher to build a complete mobile crushing production line, greatly cutting material transportation and site construction costs.

Get a Quote Talk to Engineer

Heavy-duty construction

Low operating cost

Easy maintenance

Global after-sales

WhatsApp Flora

+86 15560175572

Chat Now

PRODUCT OVERVIEW

Technical Specifications & Applications

Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.

Mobile Impact Crushing Station – Full Product HTML Page

Wanshihengtong Mobile Impact Crushing Station

01. Product Introduction

Wanshihengtong Mobile Impact Crushing Station is an integrated mobile crushing and screening equipment designed for flexible on-site crushing operations. This wheel-type or crawler-type mobile plant takes a heavy-duty impact crusher as the core host, integrating feeding, crushing, screening, conveying and centralized control into one compact mobile unit.

02. Core Performance Features

✅ Excellent Aggregate Shaping Effect

Adopts optimized impact crushing cavity and high-performance rotor structure. The finished material presents uniform cubic shape, low needle-flake content, which fully meets high-standard aggregate requirements for highways, railways and construction projects.

✅ Flexible & Fast Mobility

Wheel-type mobile station can be towed directly on the road; crawler-type unit adapts to rugged, muddy and complex terrain. No foundation pouring is needed, enabling rapid site deployment and flexible project transition.

✅ Highly Integrated Modular Design

Feeder, impact crusher, vibrating screen and belt conveyor are highly integrated. The hydraulic folding structure saves transportation space and realizes quick switching between transportation and working state.

✅ Stable & Durable Structure

The whole machine adopts high-strength steel chassis and thickened wear-resistant accessories. Key wearing parts such as blow bars and impact plates have long service life, ensuring stable long-term heavy-load operation.

✅ Intelligent & Easy Operation

Equipped with intelligent touch screen control system, one-click start and stop, automatic feeding protection and overload protection. Optional remote monitoring function makes equipment operation safer and more convenient.

✅ Low Comprehensive Operating Cost

Realizes on-site crushing and reuse of materials, avoiding long-distance material transportation. Less foundation construction and fewer auxiliary equipment effectively reduce overall project investment and operating costs.

03. Product Models & Technical Parameters

🖼️ Equipment Structure Diagram

Wanshihengtong mobile impact crushing station covers multiple models from small to large, with hourly output ranging from70t to 320t. It supports wheeled and crawler mobility, fully adaptable to different working conditions and project scales.



Model	Max Feeding Size	Capacity (t/h)	Main Crusher	Total Power (kW)	Mobile Type
WSHT-MF1210	350mm	70-130	PF1210	160	Wheel / Crawler
WSHT-MF1214	350mm	100-180	PF1214	200	Wheel / Crawler
WSHT-MF1315	500mm	130-250	PF1315	315	Wheel / Crawler
WSHT-MF1520	650mm	200-320	PF1520	400	Wheel / Crawler

04. Product Summary

Wanshihengtong Mobile Impact Crushing Station is a professional mobile secondary crushing and shaping solution for modern diversified mining and construction recycling projects. It solves the disadvantages of traditional fixed equipment such as inflexible transition, high transportation cost and tedious installation.



With excellent aggregate shaping performance, flexible mobility, intelligent control and low comprehensive cost, this mobile impact plant is widely used in quarry aggregate processing, construction waste recycling, road foundation material processing and other fields.



We provide standardized mobile crushing equipment and personalized production line solutions to help global customers achieve efficient, low-cost and environmentally friendly on-site crushing operations.



KEY FEATURES

Why Choose This Equipment

Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.

Premium Build Quality

High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.

High Productivity

Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.

Energy Efficient

Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.

Global Support Network

On-site installation, commissioning, operator training and spare parts supply available worldwide.
