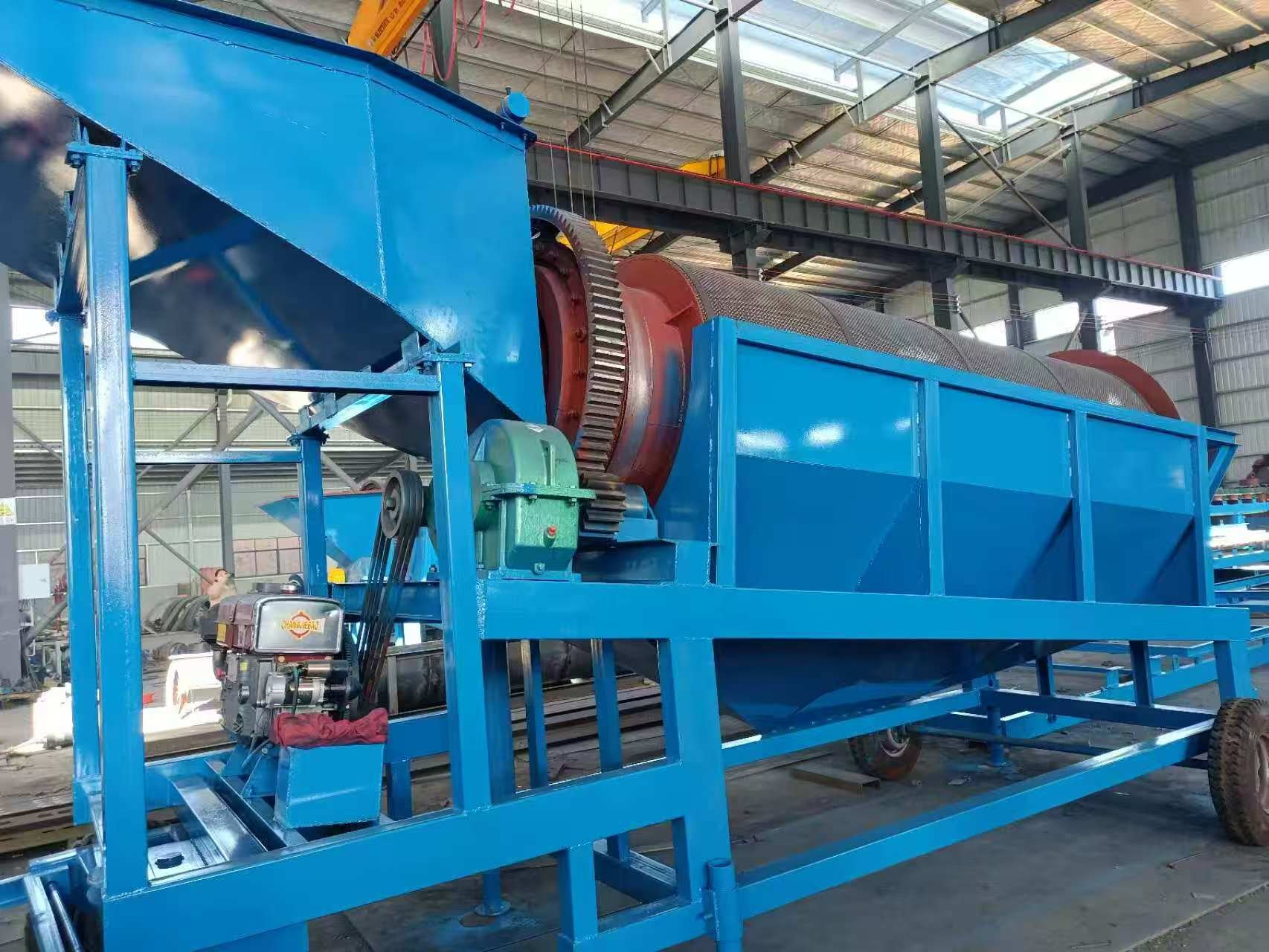

Our gold trommel screen is integrated alluvial gold washing & screening equipment, combining feeding, high-pressure water scrubbing, clay lump breaking and particle classification in one unit. Equipped with wear-resistant manganese steel screen mesh, it has stationary, wheeled mobile and diesel off-grid models to handle muddy placer gold, river sand gold and gravel deposits. Matched with gold sluice box and centrifugal concentrator, it forms a complete gold processing line with over 95% fine gold recovery rate. Simple structure, easy disassembly and low operation cost, widely applied for small & medium alluvial gold mines in Africa, Southeast Asia and Central Asia.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
Gold trommel screen is professional alluvial placer gold washing & separation equipment, integrating feeding, high-pressure water scrubbing, clay lump breaking and particle grading all in one unit. It can effectively separate gravel, mud and gold-bearing fine sand, greatly improve the recovery rate of fine gold.
We supply stationary, wheeled mobile and diesel-driven off-grid three types of trommel screens. Equipped with thickened manganese steel screen mesh, wear-resistant and long service life. It can be matched with gold sluice box, centrifugal gold concentrator to form a complete small gold processing line, widely used for river sand gold, muddy placer gold mining in Africa, Southeast Asia and Central Asia.

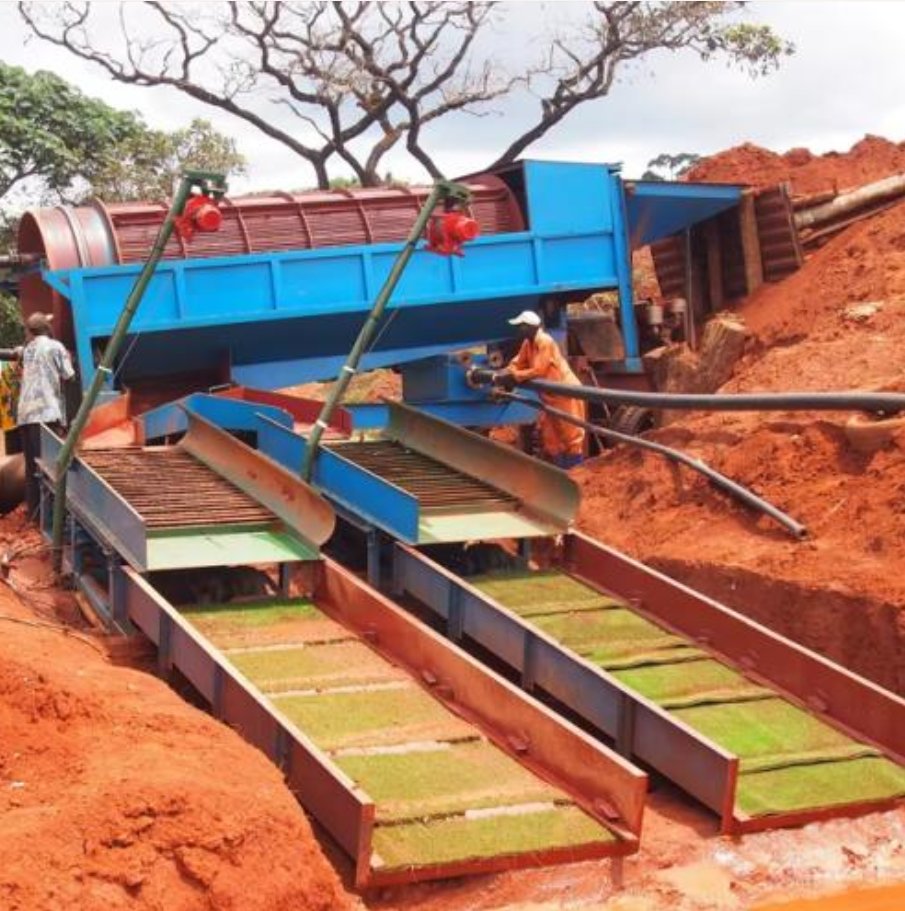

2. Product 3D Layout DisplayComplete set gold washing trommel plant with feeding hopper, scrubbing barrel, rotary screen and double group gold sluice box, supporting loader feeding for large capacity mining work.
| Model No. | Drum Size(mm) | Capacity(t/h) | Motor Power(kw) | Screen Layer | Support Configuration |
|---|---|---|---|---|---|
| GT1020 | Φ1000×2000 | 5-10 | 3.0 | Single/Double Layer | Single sluice box |
| GT1530 | Φ1500×3000 | 15-30 | 5.5 | Double Layer | Double sluice box |
| GT2040 | Φ2000×4000 | 30-50 | 7.5 | Double Layer | Double sluice + centrifugal concentrator matching |
| GT2550 | Φ2500×5000 | 50-80 | 11 | Double Layer | Full set large gold washing line |
This rotary gold trommel wash plant is specially designed for alluvial placer gold mine, river sand gold, muddy gold deposit, gravel gold ore. It fits small individual gold prospecting, medium-scale river gold mining projects, remote off-grid mountain mining sites. Besides gold, it also works for tin, tungsten, coltan, diamond and other heavy mineral separation.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
The WSHT-YK Series Circular Vibrating Screen is a high-efficiency screening equipment desi...
The WSHT-TS Trommel Screen is a cylindrical screening equipment that separates materials b...
The WSHT-MS Stone Material Separator is specialized equipment designed for separating and ...
Our engineering team will design a tailored solution based on your site conditions, ore characteristics and production targets. Bilingual project management with end-to-end support.
