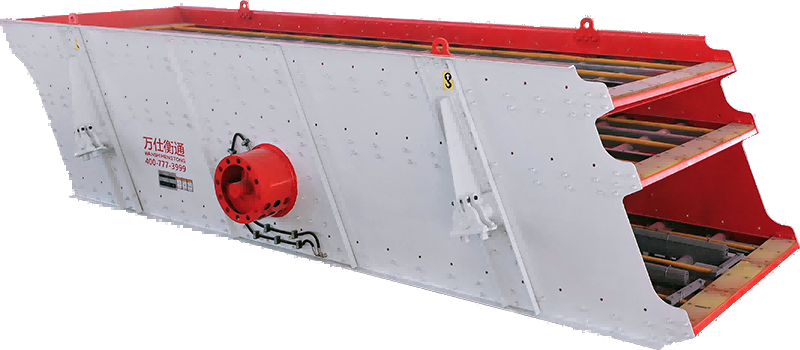

The WSHT ZSG Series Linear Vibrating Screen is a compact, high-efficiency screening machine designed for fine material classification, dewatering, and desliming in small to medium-scale processing operations. The linear motion trajectory provides excellent screening accuracy for fine materials in the 0.5-50mm size range. Its dual-vibrator design generates a straight-line vibration that efficiently conveys and stratifies material, making it ideal for laboratory, pilot plant, and small-scale production applications.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
Capacity: 2-6 TPH | Precision Engineered for Mining & Mineral Processing
The WSHT ZSG Series Linear Vibrating Screen is a compact, high-efficiency screening machine designed for fine material classification, dewatering, and desliming in small to medium-scale processing operations. The linear motion trajectory provides excellent screening accuracy for fine materials in the 0.5-50mm size range. Its dual-vibrator design generates a straight-line vibration that efficiently conveys and stratifies material, making it ideal for laboratory, pilot plant, and small-scale production applications.
Available Models: ZSG-5-10, ZSG-6-12, ZSG-8-16, ZSG-10-20
Key Parameters: Deck size: 0.5×1.0~1.0×2.0m | Amplitude: 3-6mm | Power: 2×0.75-2×3.0KW
The linear vibrating screen employs two counter-rotating vibrator motors mounted at opposing angles to the screen deck. The synchronized rotation of these motors produces a resultant linear vibration force directed along a specific angle, typically 45° to the horizontal. This linear motion both conveys material forward along the deck and stratifies it by particle size. The material moves in a straight line without bouncing, ensuring continuous contact with the screen surface for efficient fine particle separation.
Contact WSHT Mining Group
For detailed specifications, pricing, or customized solutions, please contact our engineering team.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
