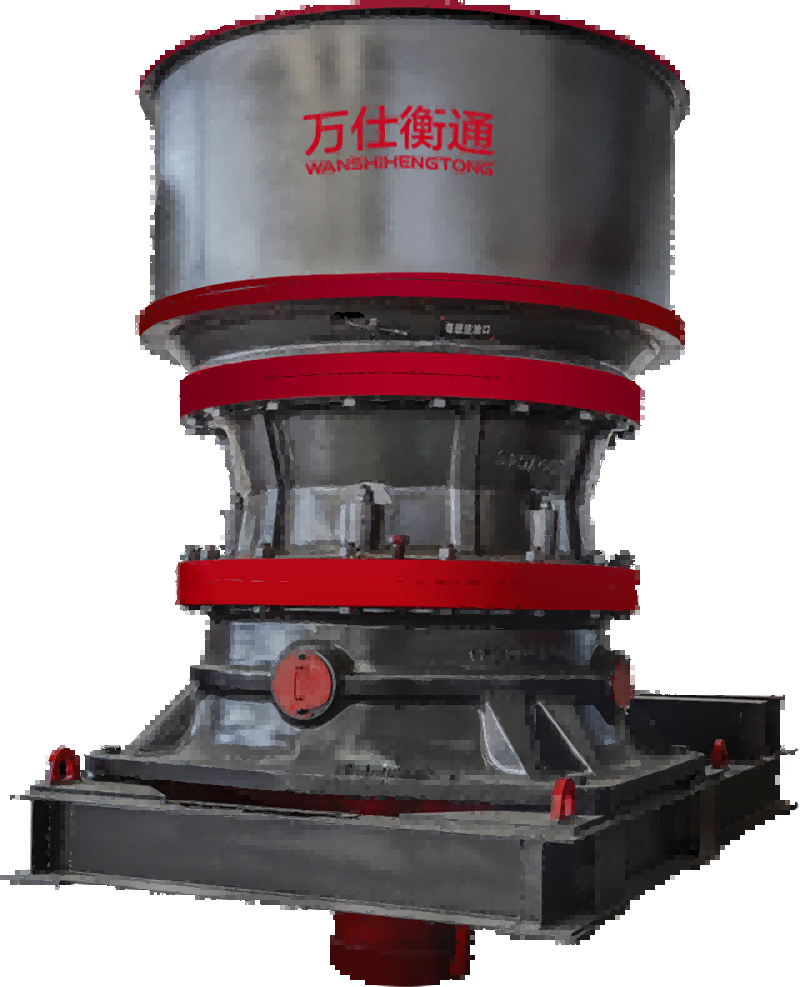

The WSHT DG Series Single Cylinder Hydraulic Cone Crusher represents the latest advancement in cone crushing technology, combining high capacity with exceptional product shape. The single-cylinder hydraulic design provides reliable overload protection, easy clearing of uncrushable materials, and convenient hydraulic adjustment of the discharge setting. With its compact structure, high crushing force, and intelligent control system, the DG series delivers outstanding performance in medium to fine crushing applications for gold ore, iron ore, and hard rock processing.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
Capacity: 25-1510 TPH | Precision Engineered for Mining & Mineral Processing
The WSHT DG Series Single Cylinder Hydraulic Cone Crusher represents the latest advancement in cone crushing technology, combining high capacity with exceptional product shape. The single-cylinder hydraulic design provides reliable overload protection, easy clearing of uncrushable materials, and convenient hydraulic adjustment of the discharge setting. With its compact structure, high crushing force, and intelligent control system, the DG series delivers outstanding performance in medium to fine crushing applications for gold ore, iron ore, and hard rock processing.
Available Models: DG100, DG200, DG300, DG400, DG500, DG600, DG800, DG1000, DG1200, DG1500
Key Parameters: Feed size: up to 450mm | Discharge: 6-64mm | Power: 75-630KW | Weight: 5.8-83.5T
The DG Cone Crusher operates on the principle of laminated crushing. The motor drives the eccentric sleeve through a horizontal shaft and bevel gear pair, causing the main shaft to perform an eccentric gyratory motion. The mantle (moving cone) periodically approaches and retreats from the concave (fixed cone), compressing materials trapped in the crushing chamber. The single cylinder beneath the main shaft provides hydraulic support, adjusts the discharge opening, and acts as a safety device when non-crushable materials enter the chamber.
Contact WSHT Mining Group
For detailed specifications, pricing, or customized solutions, please contact our engineering team.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
The WSHT Mobile Crushing Plant is a fully integrated, portable crushing system designed fo...
The WSHT-MJ Mobile Jaw Crushing Plant is a complete mobile primary crushing unit featuring...
The WSHT-MC Mobile Cone Crushing Plant is a track-mounted or wheeled mobile secondary crus...
Our engineering team will design a tailored solution based on your site conditions, ore characteristics and production targets. Bilingual project management with end-to-end support.
