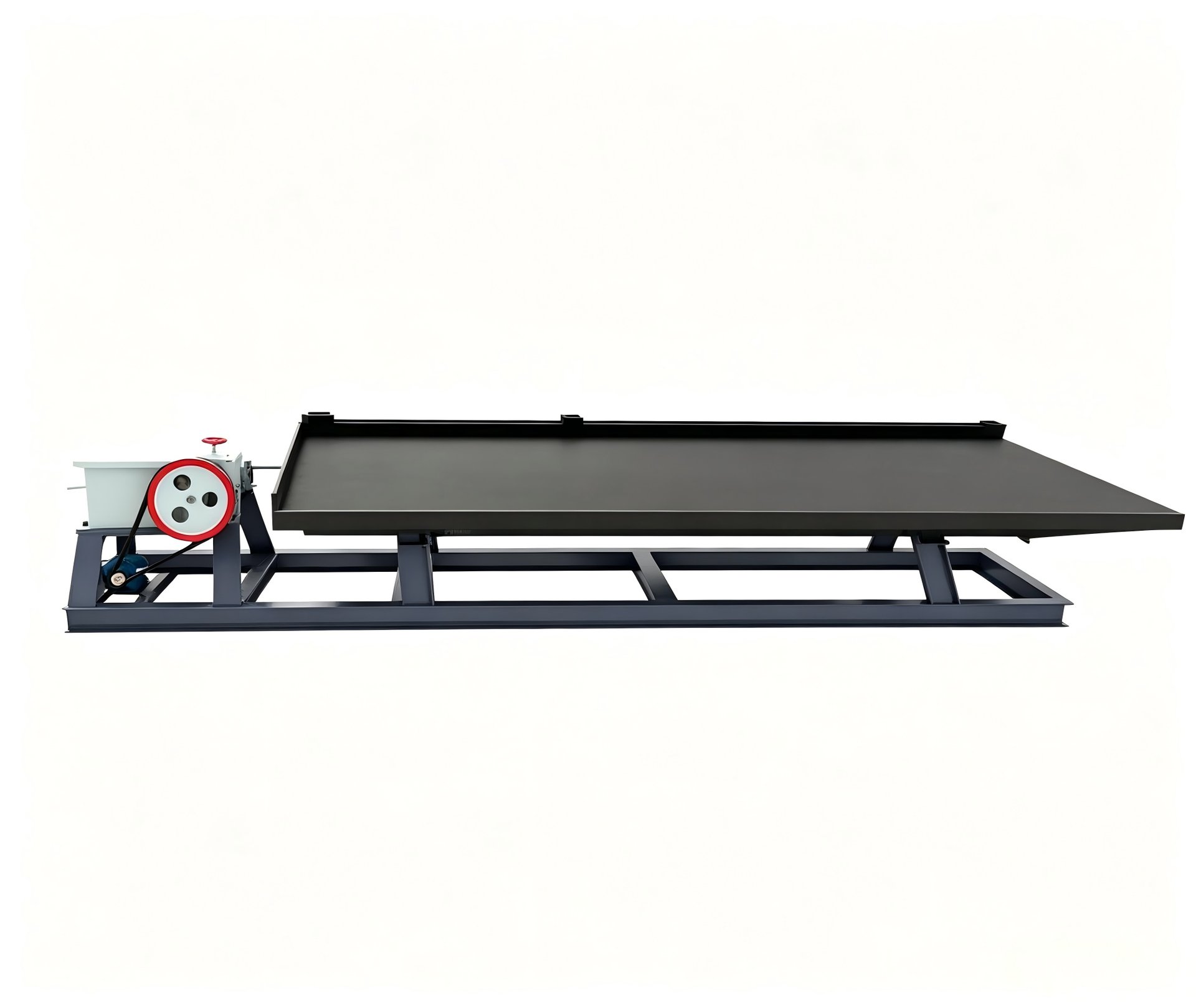

6S shaking table is high-precision gravity separation equipment for fine ore. Adopting glass fiber anti-corrosion bed surface and eccentric crank drive structure, it features stable stroke, high fine mineral recovery rate, no pollution and easy operation. Suitable for gold, tin, tungsten, manganese, coltan ore fine separation, widely used in mineral processing plants.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.

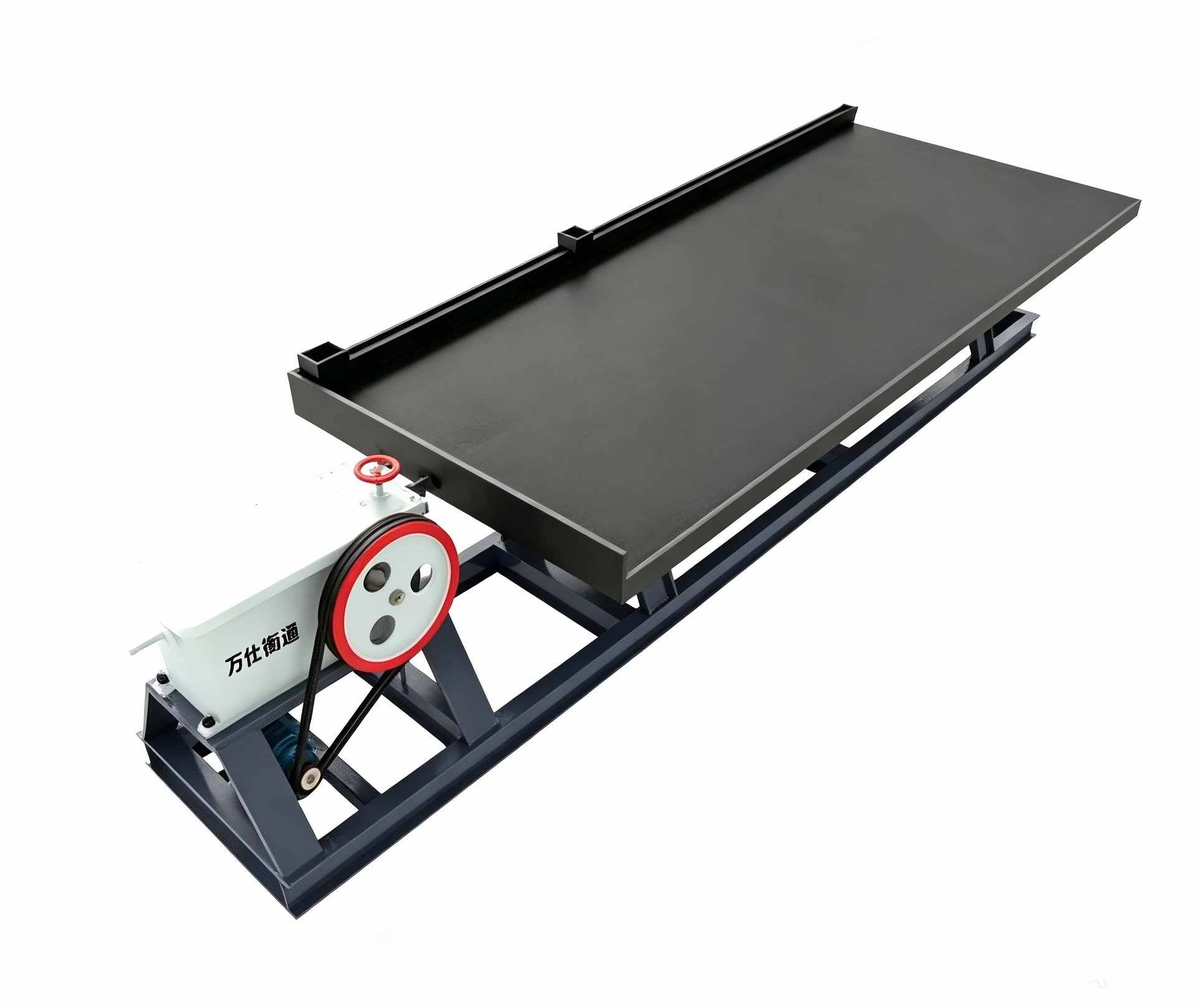

WSHT 6S shaking table is professional high-precision gravity separation equipment for fine mineral beneficiation. It relies on mechanical vibration and water flow washing to separate minerals according to density difference. The deck surface is made of thick glass fiber, anti-corrosion, wear-resistant and not easy to deform. It can classify coarse sand, fine sand and slime materials separately, with clear separation of concentrate, middling and tailings, greatly improving the recovery rate of ultra-fine valuable minerals. It is widely used in rock gold mine, placer gold washing plant, tin, tungsten, tantalum niobium ore processing line, matched with ball mill, spiral chute, centrifugal concentrator to form complete mineral processing flow.
| Technical Parameters | 6-S LY(S)4500 | 6-S LY3000 | 6-S LY2100 | 6-S LY1100 | |
|---|---|---|---|---|---|
| Deck Model | LY(S)4500 | LY3000 | LY2100 | LY1100 | |
| Deck Size L*W of Feeding Side * W of Concentrate Side (mm) | 4500×1850×1560 | 3000×1680×1380 | 2100×1050×850 | 1100×500×430 | |
| Concentration Area (m²) | 7.67 | 4.08 | 2 | 0.51 | |
| Feeding Size (mm) | Coarse | 2-0.5 | 2-0.5 | 2-0.5 | 2-0.5 |
| Fine | 0.5-0.074 | 0.5-0.074 | 0.5-0.074 | 0.5-0.074 | |
| Slime | 0.074-0.037 | 0.074-0.037 | 0.074-0.037 | 0.074-0.037 | |
| Feeding Density (%) | 10-30 | 10-30 | 10-30 | 10-30 | |
| Capacity (t/h) | Coarse | 1-2.5 | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 |
| Fine | 0.8-1.2 | 0.3-0.8 | 0.2-0.5 | 0.05-0.1 | |
| Slime | 0.3-0.9 | 0.2-0.6 | 0.1-0.4 | 0.03-0.05 | |
| Water Consumption (t/h) | 2-5 | 1.5-3 | 1-2.5 | 0.2-0.5 | |
| Stroke Length (mm) | 10-30 | 10-30 | 10-30 | 9-17 | |
| Frequency (t/min) | 240-360 | 210-360 | 210-360 | 130-210 | |
| Horizontal Slope | 0°~10° | 0°~10° | 0°~10° | 0°~8° | |
| Motor | Model | Y70L-4 | Y100L-4 | Y90L-4 | Y80L-4 |
| Power (kW) | 1.1 | 1.1 | 1.1 | 0.55 | |
| Dimension L*W*H (mm) | 5630×1850×860 | 4130×1680×860 | 3040×1050×760 | 1530×500×660 | |
| Machine Weight (kg) | 1100 | 1000 | 750 | 350 | |
This 6S shaking table is specially designed for fine particle gravity separation of rock gold, placer gold, tin ore, tungsten ore, tantalum niobium ore, manganese ore, iron ore. Widely applied in small individual gold prospecting, medium-scale rock gold processing plant, mine tailings secondary recovery, Africa and Southeast Asia mineral dressing projects.
Shaking table can cooperate with jaw crusher, ball mill, wet pan mill, spiral chute, vibrating gold sluice and centrifugal gold concentrator to form a full set of rock gold & placer gold recovery production line.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
