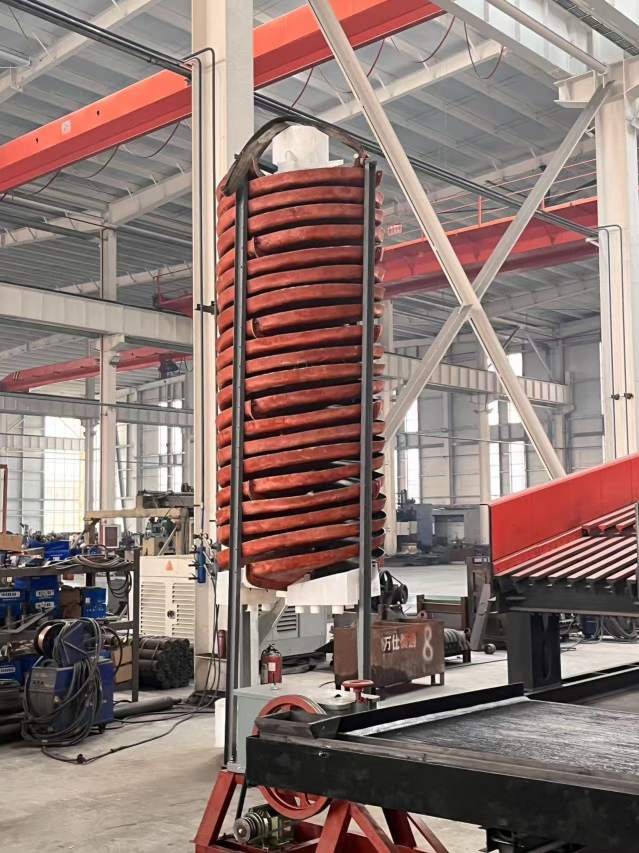

WSHT spiral chute is energy-free gravity separation equipment, relying on water flow and gravity difference to separate fine gold, tin, tantalum, iron, manganese and other heavy minerals. The spiral trough is made of thick wear-resistant polyurethane material, durable and anti-corrosion. It does not need motor power, only requires water circulation, low operation cost, high recovery rate of micro fine gold particles. Widely matched with ball mill, wet pan mill, centrifugal concentrator and trommel screen, applied to rock gold mine, river placer gold mine, tailings reprocessing and various metal ore dressing projects in Africa, Southeast Asia.
Detailed technical information, working principles and application scenarios. Custom configurations available based on your project requirements.
WSHT spiral chute is energy-saving gravity separation equipment without motor power. It uses the density difference between valuable minerals and gangue, combined with spiral water flow layering to realize separation of fine gold, tin, tantalum, iron, manganese ore. The spiral groove adopts thickened polyurethane integrated molding, anti-wear, anti-corrosion and long service life. Only circulating water is needed during operation, low daily running cost, high recovery rate of ultra-fine wrapped gold. It is the ideal matching equipment for ball mill, wet pan mill and gold trommel screen in mineral processing production line.
| Model | Screw Diameter(mm) | Single Groove Capacity(t/h) | Number Of Grooves | Feeding Size(mm) | Material |
|---|---|---|---|---|---|
| 5LL-600 | 600 | 0.3-0.8 | 1/2 grooves optional | 0.03-0.3 | Polyurethane |
| 5LL-900 | 900 | 0.8-1.8 | 2/4 grooves optional | 0.03-0.5 | Polyurethane |
| 5LL-1200 | 1200 | 1.5-3.0 | 4/6 grooves optional | 0.03-0.6 | Polyurethane |
| 5LL-1500 | 1500 | 2.5-4.5 | 6/8 grooves optional | 0.03-0.8 | Polyurethane |
This spiral chute is specially used for fine particle gravity separation of rock gold, river placer gold, tin ore, tantalum niobium ore, iron ore, manganese ore, tungsten ore. Widely applied in small individual gold prospecting, medium-sized rock gold processing plant, mine tailings secondary recovery, overseas African gold mine concentrator projects.
Spiral chute can cooperate with jaw crusher, ball mill, wet pan mill, gold trommel screen, centrifugal gold concentrator, shaking table to form a full set of rock gold & placer gold recovery production line.
Engineered for reliability, built for performance. Every WSHT product reflects our commitment to quality and innovation.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Optimized chamber geometry and intelligent design deliver maximum output per hour with minimal downtime.
Advanced engineering reduces power consumption by up to 20% compared to conventional equipment designs.
On-site installation, commissioning, operator training and spare parts supply available worldwide.
