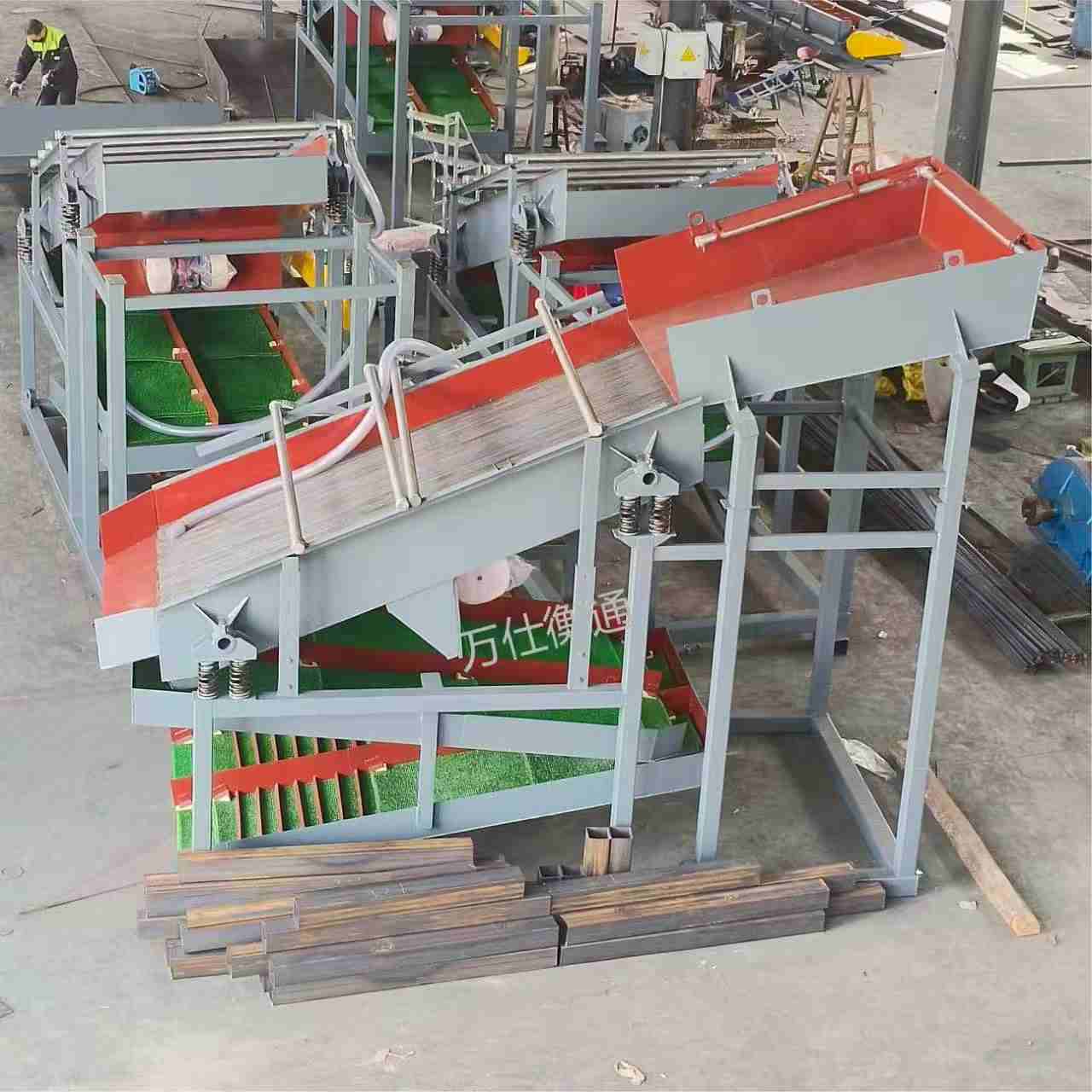

Wanshihengtong 0626 Vibrating Screen | High-Frequency Alluvial Gold Mining Screening Equipment
01. Product Introduction
Wanshihengtong 0626 vibrating screen is a compact and high-efficiency linear vibrating screening equipment specially optimized for small and medium-scale placer gold and alluvial gold washing projects. With standard screen deck size of 0.6×2.6m, this mini vibrating screen is designed for fine particle grading, desliming and secondary material screening after trommel washing, making it the ideal supporting equipment for complete gold wash plants.
Different from heavy-duty quarry vibrating screens, the WS0626 gold mining vibrating screen adopts high-frequency vibration and low-amplitude working principle, which is more targeted at fine gold-bearing sand, river sand and clay-containing ore materials. It effectively solves the problems of mixed material particle size, residual mud impurities and low fine gold screening rate after primary trommel screening. By precisely grading materials, it greatly improves the separation purity of subsequent gold concentrators and shaking tables, significantly boosting the overall gold recovery rate.
This 0626 vibrating screen features lightweight structure, stable operation and flexible installation. It can be perfectly matched with 0415, 1030 and 1240 series gold trommel screens to form a matched closed-circuit gold washing and screening system. Suitable for fixed gold washing workshops and mobile trailer mining stations, it is widely applied in small and medium-sized gold mining projects in Africa, Southeast Asia and Latin America.
02. Core Performance Features
High-Frequency Fine Screening & High Grading Accuracy
Equipped with professional high-frequency vibration motor, the screen machine forms stable and uniform vibration force. It can effectively disperse sticky fine sand and layered screen gold-bearing materials, realizing precise separation of fine-grained gold ore. The screening accuracy for 0-5mm fine materials is far higher than ordinary screening equipment, avoiding fine gold loss caused by mixed materials.
Anti-Clogging & Wear-Resistant Screen Mesh
The screen deck adopts high-strength manganese steel screen mesh with flexible anti-blocking structure. It effectively prevents mud bonding, sand accumulation and material clogging during high-clay ore screening. The wear-resistant and impact-resistant material extends service life and reduces frequent screen mesh replacement costs in long-term mining operations.
Compact Structure & Flexible Matching
Scientific 0.6×2.6m ultra-compact design occupies small space, with light overall weight and convenient assembly. It is perfectly compatible with all small and medium-sized gold trommel screens of Wanshihengtong, realizing seamless docking of feeding and discharging. It supports both fixed ground installation and trailer mobile integrated installation, adapting to various complex mine sites.
Stable Operation & Low Failure Rate
Adopts optimized vibration balance design with low vibration and low noise during operation. The fully sealed structural design prevents dust overflow and material splashing, meeting green mining standards. The whole machine has simple transmission structure, few vulnerable parts and stable continuous operation performance, suitable for 24-hour uninterrupted gold washing production.
Low Energy Consumption & Easy Maintenance
Equipped with energy-saving vibration motor, the equipment consumes lower power while maintaining high screening efficiency. The modular disassembly design makes daily cleaning, screen mesh replacement and equipment maintenance more convenient, effectively reducing manual operation time and later-stage maintenance costs.
Customizable Screening Specification
Support customized screen mesh aperture according to customer ore fineness requirements, meeting the screening demands of different particle sizes of fine gold, medium gold and coarse gold. It can flexibly adjust material grading standards to match different beneficiation process flows.
03. Working Principle
After the preliminary washing and screening by the gold trommel screen, the fine gold-bearing sand materials are evenly transported to the screen surface of the Wanshihengtong 0626 vibrating screen. Driven by the high-frequency vibration motor, the screen deck generates continuous and regular linear vibration force.
Under the action of vibration and gravity, materials are continuously tossed, dispersed and moved forward on the screen surface. Fine qualified gold-bearing sand particles pass through the screen mesh and enter the next-stage gold concentrator or shaking table for fine gold recovery. Large-particle impurities, residual gravel and unqualified coarse materials are discharged from the screen tail. The whole screening process is continuous and automatic, realizing efficient fine grading and purification of gold ore materials, and laying a solid foundation for improving the final gold recovery rate.
04. Application Scope
- Secondary fine screening for alluvial placer gold washing plant
- River sand gold and eluvial gold fine particle grading and desliming
- Supporting screening equipment for small and medium gold trommel screen production lines
- Fine material purification before gold centrifugal concentrator and shaking table separation
- Mobile gold mining station auxiliary screening and impurity removal operation
05. Technical Parameters
Item | Parameter |
|---|
Model | WS-0626 Vibrating Screen |
Screen Deck Size | 600×2600mm |
Screen Layer | Single / Double Layer Customized |
Vibration Frequency | High-frequency Customizable |
Processing Capacity | 10-20t/h |
Matching Power | 2.2kw |
Screen Mesh Aperture | Customized According to Ore Conditions |
Working Method | Stationary / Mobile Trailer Matching |
Note: The actual processing capacity and screening effect are affected by material humidity, mud content and particle size. We provide personalized screen mesh customization and full gold washing process configuration services.
06. Product Summary
Wanshihengtong 0626 vibrating screen is a professional supporting fine screening equipment for gold mining washing plants. It makes up for the deficiency of insufficient fine grading of traditional trommel screens, with the advantages of high screening precision, anti-clogging performance, stable operation and low energy consumption. It can effectively purify gold-bearing materials, remove residual impurities, and maximize the recovery rate of fine gold particles.
With compact size and strong compatibility, this vibrating screen is the best matching equipment for small and medium-sized gold trommel washing lines. Wanshihengtong provides one-stop gold mining solution services including equipment selection, process design, on-site installation guidance and after-sales technical support, helping global mine customers optimize production lines and improve economic benefits.
