描述

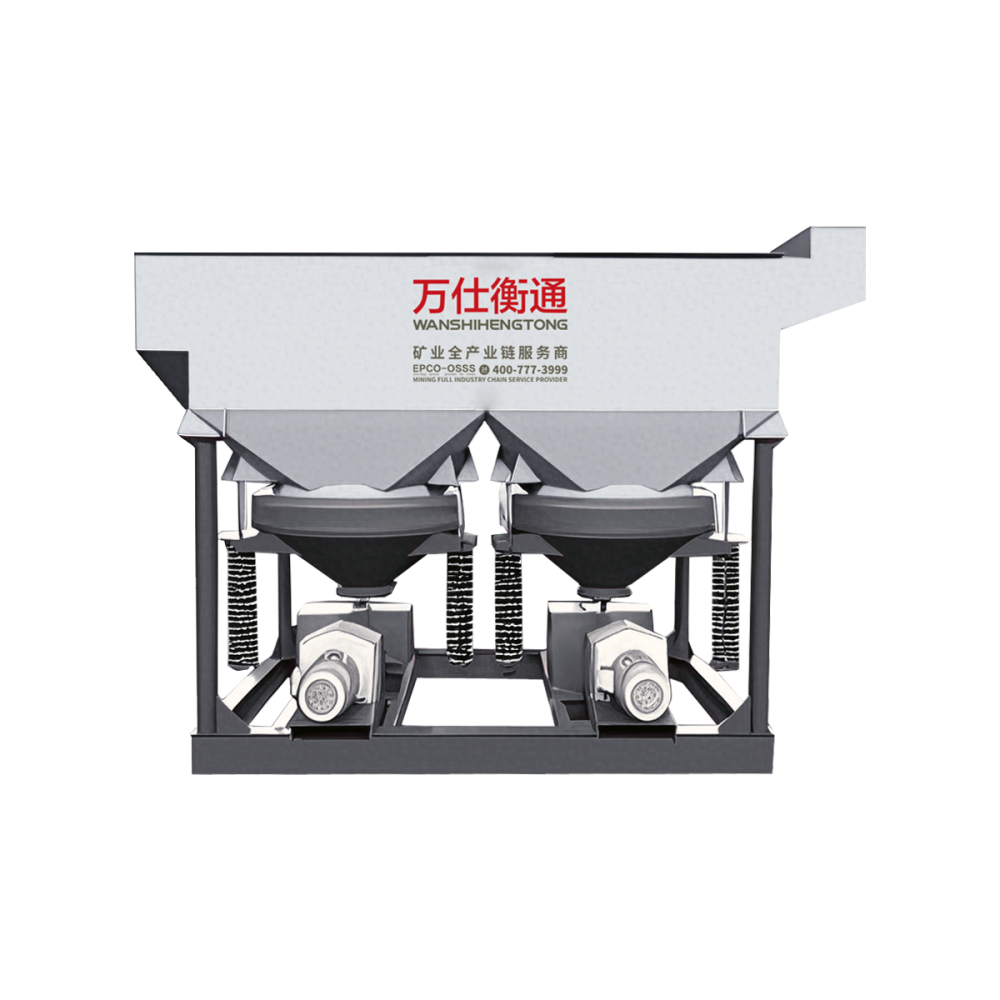

| Model | Jigging Chamber Shape | Jigging Chamber Area (m虏) | Stroke (mm) | Frequency (n/min) | Feed Size (mm) | Under-screen Water Supply (m鲁/h) | Water Pressure (MPa) | Processing Capacity (t/h) | Motor Power (KW) | Weight (kg) |
| WS JT0.57-1 | 梯形 Trapezoidal |
0.57 | 8.5-12 | 80～180 | ＜6 | 1～2 | ＞0.1 | 1.5～3 | 1.5 | 610 |
| WS JT1-1 | 梯形 Trapezoidal |
10.4 | 10-17 | 80～180 | ＜10 | 2～3 | ＞0.1 | 2.5～5 | 2.2 | 900 |
| WS JT2-2 | 矩形 Rectangular |
2.28 | 12-21 | 80～180 | ＜10 | 2～4 | ＞0.1 | 5～10 | 3 | 1640 |
| WS JT3-1 | 梯形 Trapezoidal |
3 | 12-30 | 50～125 | ＜10 | 3～6 | ＞0.1 | 7.5～15 | 5.5 | 3150 |
| WS JT4-2 | 矩形 Rectangular |
4 | 25-57 | 50～125 | ＜25 | 4～8 | ＞0.1 | 8～20 | 7.5 | 3500 |
| WS JT5-2 | 梯形 Trapezoidal |
4.86 | 12-30 | 50～125 | ＜25 | 3～6 | ＞0.1 | 12～25 | 7.5 | 4500 |
Advanced Pulsation Separation Technology
Utilizes hydraulic pulsation (0.5-2.5 Hz frequency) and bed loosening effect
Processes minerals across multiple size ranges (0.5-50mm)
Achieves mineral recovery rates of 85-98% depending on ore type
Intelligent Control System
Adjustable water flow velocity (0.1-0.3 m/s) with customizable pulsation parameters (amplitude 30-100mm)
Simple operation with automated control options available
Maintains stable performance with energy consumption of 0.5-1.2 kWh/ton
Heavy-Duty Industrial Solution
Large processing capacity (10-50 t/h per square meter of bed area) energy consumption: 0.5-1.2 kWh/ton
Specializes in coal washing (ash reduction to 8-12%), tungsten, tin, and iron ores
Reduces processing costs by 15-25% compared to alternative methods while handling wastewater treatment applications
